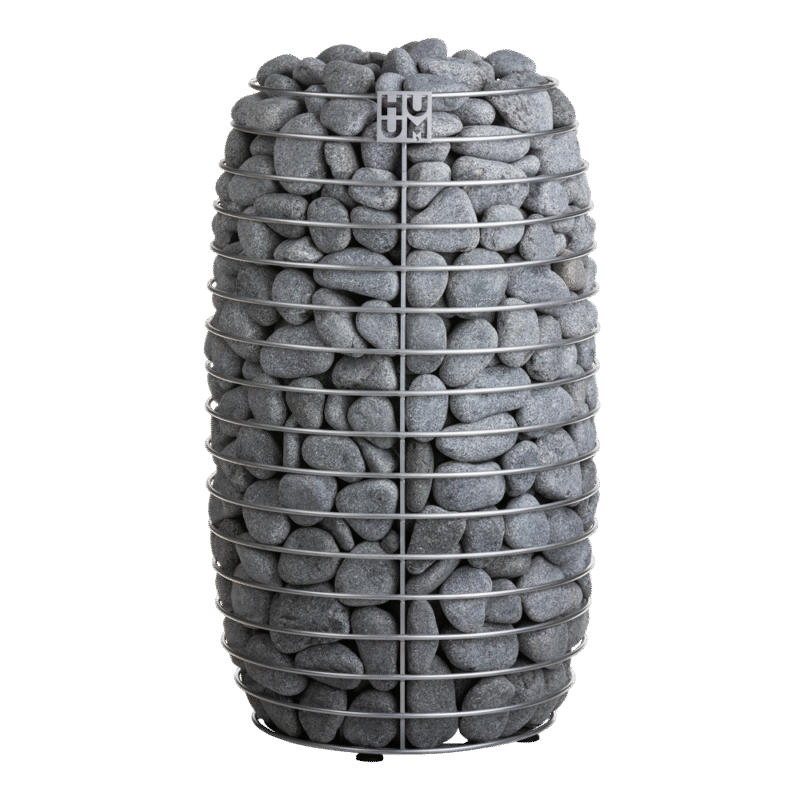

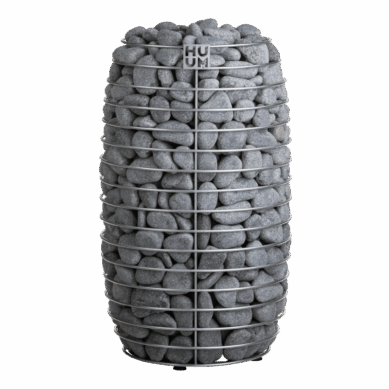

HIVE Mini electric sauna heater
Electric sauna heaters
- Stone-emphasizing design
- Mild and long-lasting steam
- Control with mobile app
- Warranty 5 years

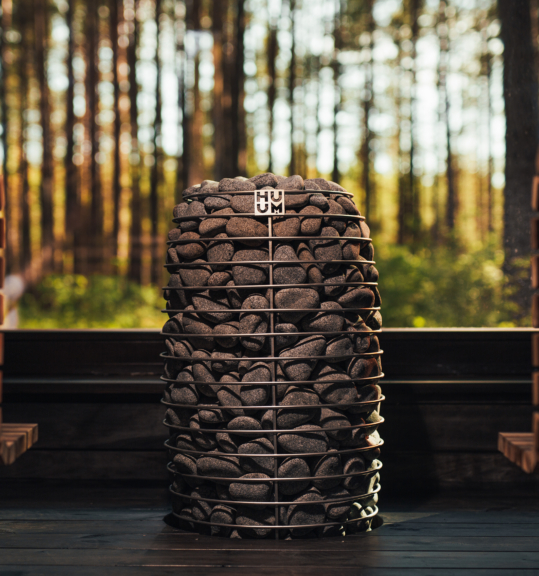

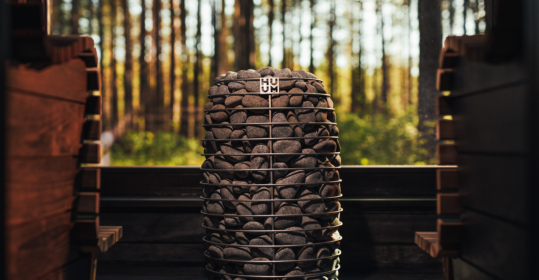

HIVE Mini electric sauna heater is a smaller version of the popular HIVE sauna heater, perfect for slightly smaller saunas. With its round and majestic design, this sauna heater can still hold up to 170 kg / 375 lb of sauna stones, ensuring long-lasting and mild steam for sauna-goers. The details of the heater are made of durable stainless steel. Its compact size doesn’t compromise on performance, making it a great option for those who want a high-quality sauna experience without needing a larger heater.
Specifications
Models
Metric
Imperial
Heater
- Power rating 6 kW 6 kW
- Steam room min 5 m³ 176.6 ft³
- Steam room max 9 m³ 317.8 ft³
- Holding capacity of sauna rocks 170 kg 374.8 lb
- Weight 14 kg 30.9 lb
- Height 750 mm 29.6 in
- Diameter 460 mm 18.1 in
- Power rating 4.5 kW 4.5 kW
- Steam room min 3.75 m³ 132 ft³
- Steam room max 6 m³ 212 ft³
- Holding capacity of sauna rocks 170 kg 374.8 lb
- Weight 14 kg 30.9 lb
- Height 750 mm 29.6 in
- Diameter 460 mm 18.1 in
Connection
- Fuse 30 A
- Supply voltage 240 V 2~
- Power cable 10 AWG
- Fuse 30 A
- Supply voltage 208 V 2~
- Power cable 10 AWG

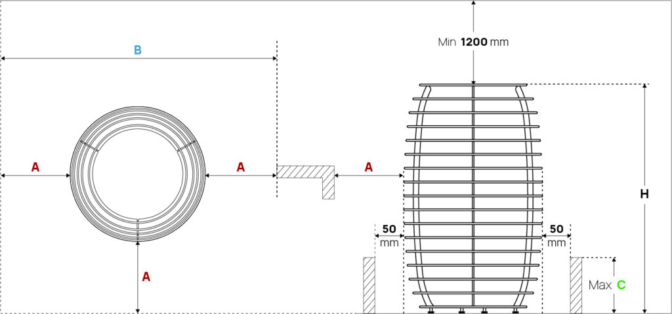

Safety distances
- A 60 mm 2.4 in
- B 580 mm 22.8 in
- A 60 mm 2.4 in
- B 580 mm 22.8 in
Metric
Imperial
Heater
- Power rating 9 kW 9 kW
- Steam room min 8 m³ 282 ft³
- Steam room max 15 m³ 530 ft³
- Holding capacity of sauna rocks 170 kg 374.8 lb
- Weight 16 kg 35.3 lb
- Height 750 mm 29.6 in
- Diameter 460 mm 18.1 in
- Power rating 6.75 kW 6.75 kW
- Steam room min 6.5 m³ 230 ft³
- Steam room max 11 m³ 388 ft³
- Holding capacity of sauna rocks 170 kg 374.8 lb
- Weight 16 kg 35.3 lb
- Height 750 mm 29.6 in
- Diameter 460 mm 18.1 in
Connection
- Fuse 50 A
- Supply voltage 240 V 2~
- Power cable 8 AWG
- Fuse 40 A
- Supply voltage 208 V 2~
- Power cable 8 AWG
Safety distances
- A 90 mm 3.5 in
- B 640 mm 25.2 in
- A 90 mm 3.5 in
- B 640 mm 25.2 in
Metric
Imperial
Heater
- Power rating 10.6 kW 10.6 kW
- Steam room min 10 m³ 353.1 ft³
- Steam room max 20 m³ 706.3 ft³
- Holding capacity of sauna rocks 170 kg 374.8 lb
- Weight 16 kg 35.3 lb
- Height 750 mm 29.6 in
- Diameter 460 mm 18.1 in
- Power rating 7.9 kW 7.9 kW
- Steam room min 7.5 m³ 265 ft³
- Steam room max 15 m³ 530 ft³
- Holding capacity of sauna rocks 170 kg 374.8 lb
- Weight 16 kg 35.3 lb
- Height 750 mm 29.6 in
- Diameter 460 mm 18.1 in
Connection
- Fuse 50 A
- Supply voltage 240 V 2~
- Power cable 6 AWG
- Fuse 50 A
- Supply voltage 208 V 2~
- Power cable 6 AWG
Safety distances
- A 110 mm 4.3 in
- B 680 mm 26.8 in
- A 110 mm 4.3 in
- B 680 mm 26.8 in
The set includes
Heater aditionally needs
- UKU sauna control system
- 170 kg / 374.7 lb of sauna stones with the diameter of 5–10 cm / 2-4 in
- Heat-resistant power cable
Design options
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

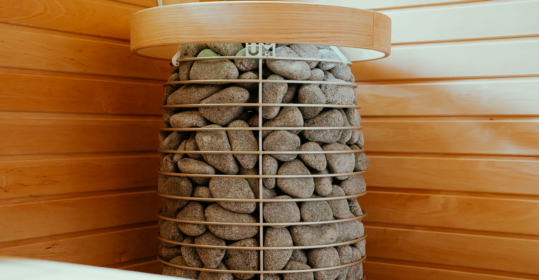

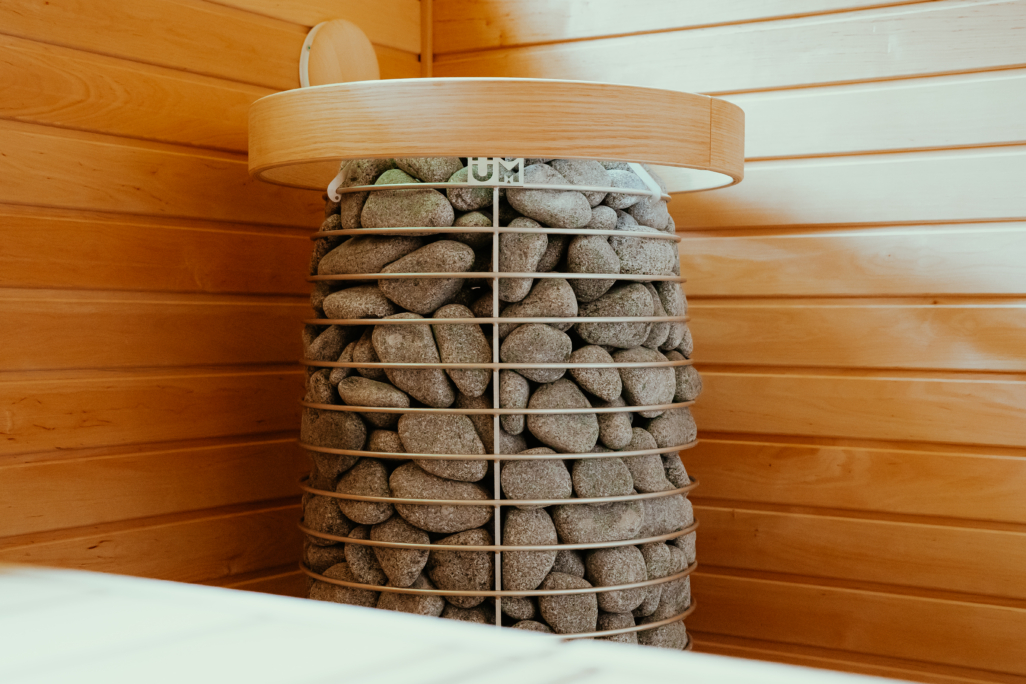

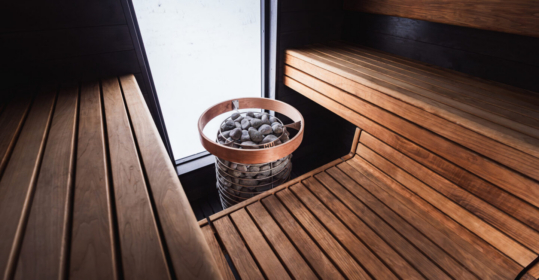

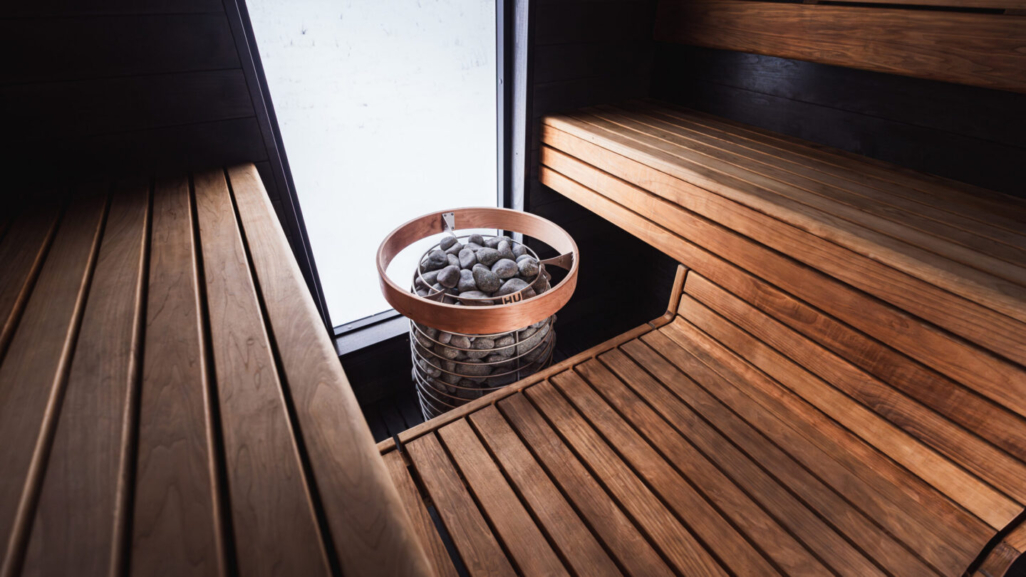

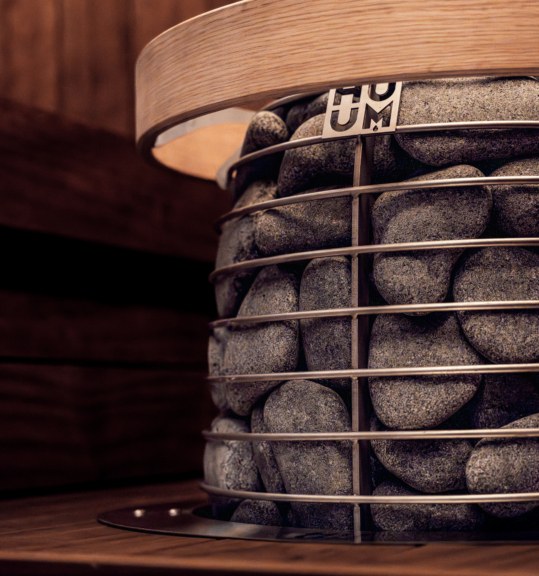

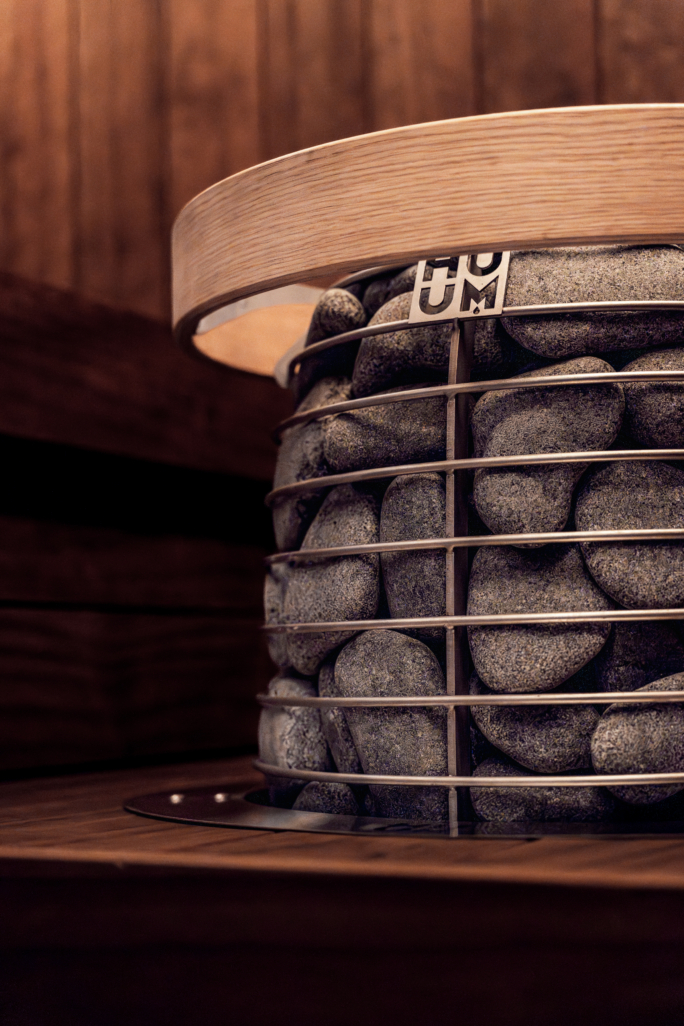

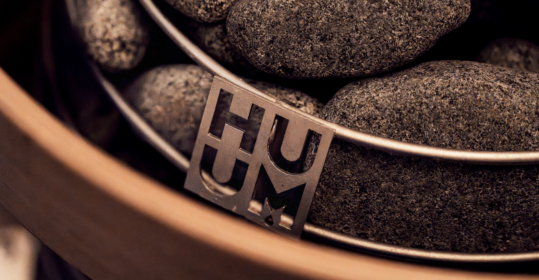

- The safety railing with wooden arches complements the design and adds safety.

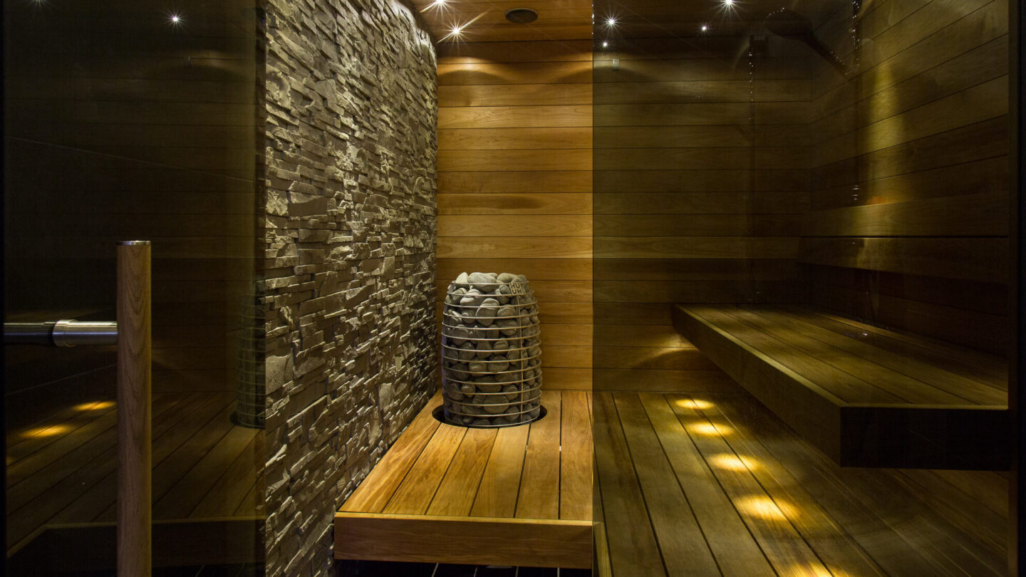

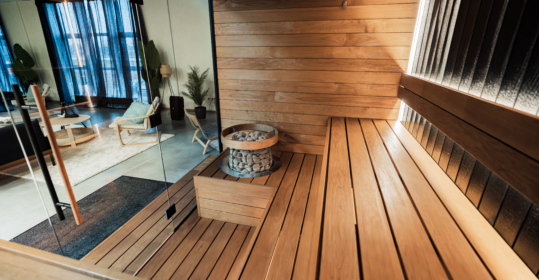

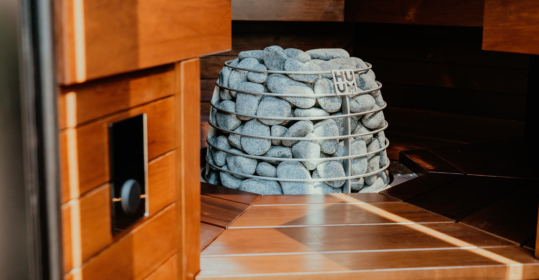

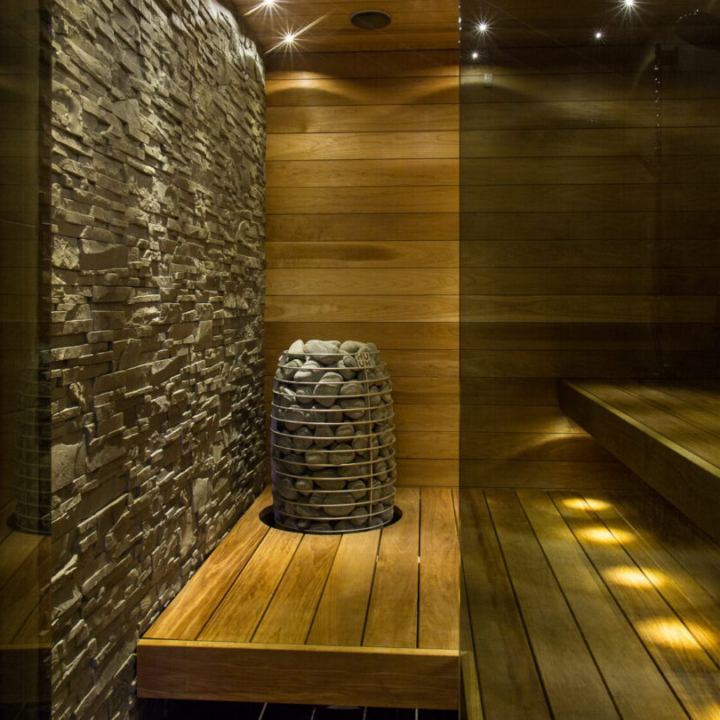

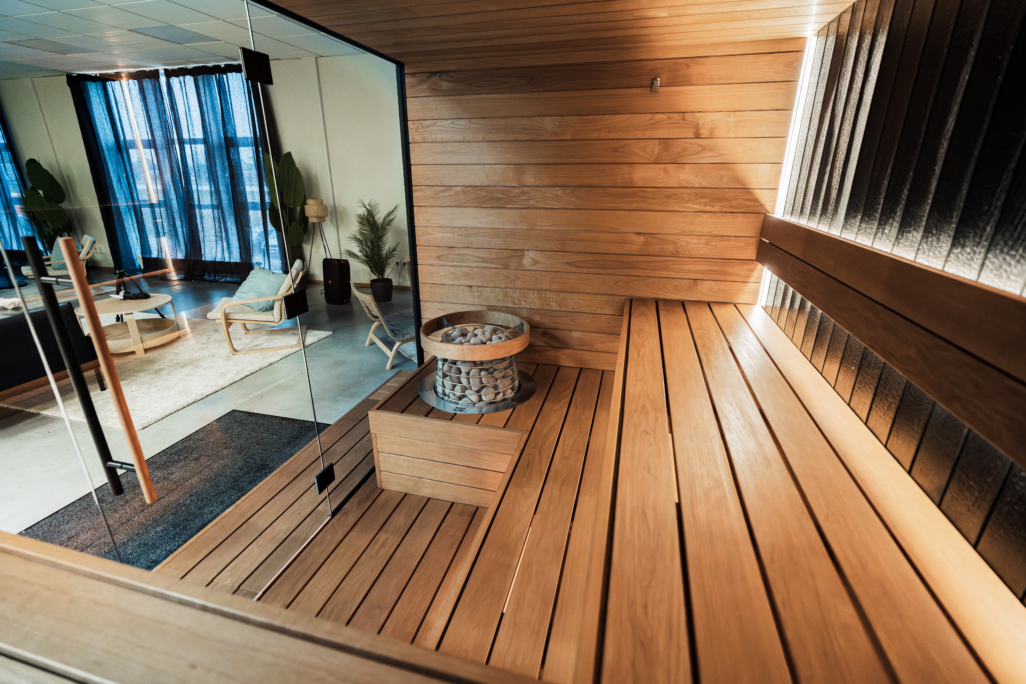

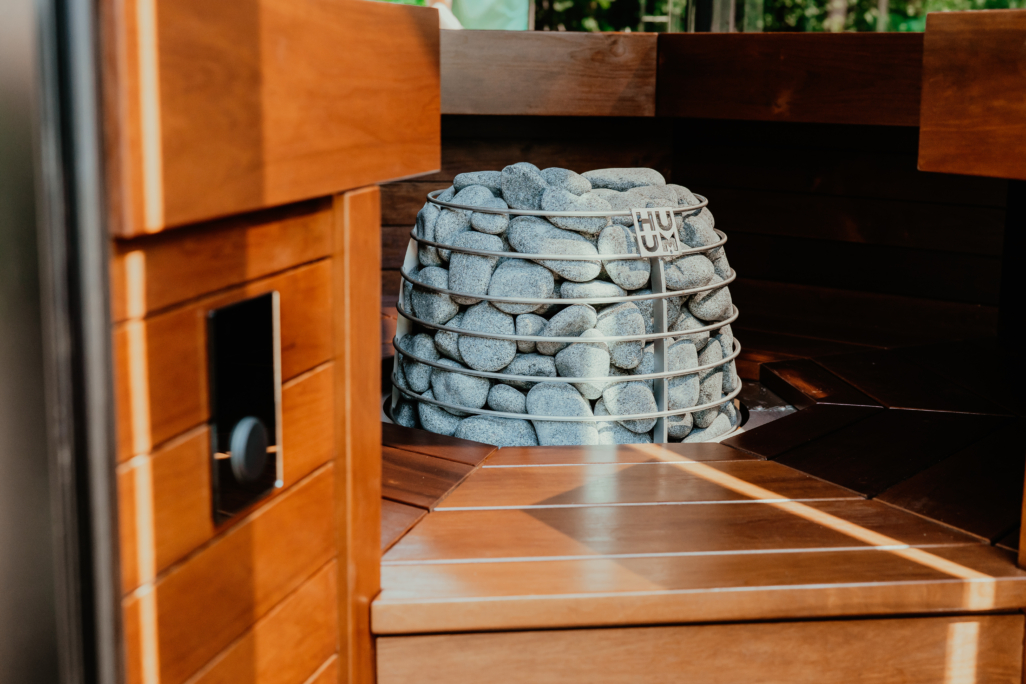

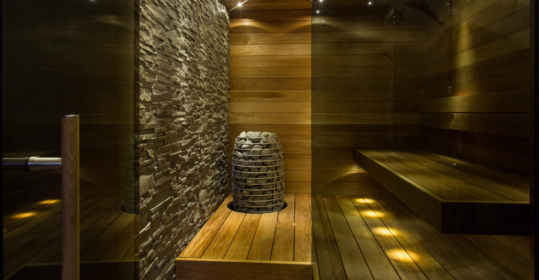

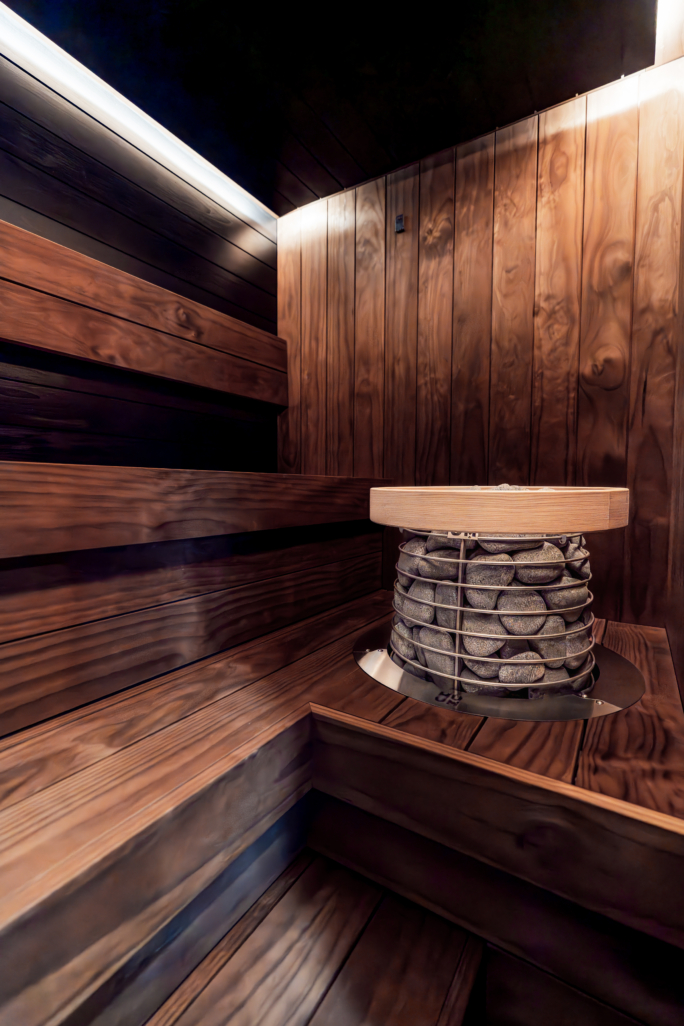

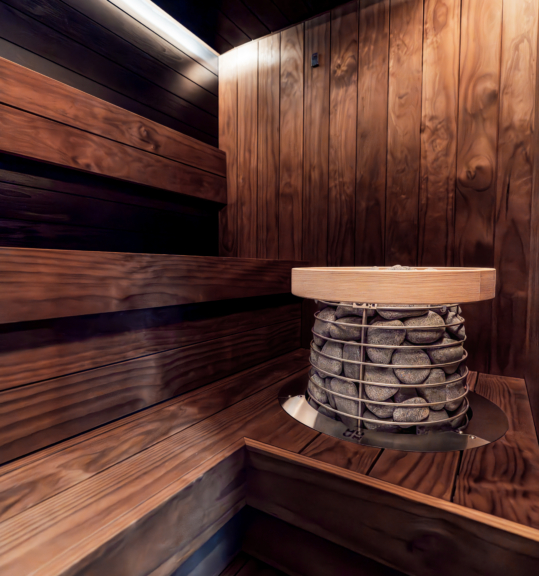

- As a design option, HIVE Mini electric sauna heater can be embedded into the sauna bench.
- When the heater is embedded, at least 350 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of the HIVE electric sauna heater to cover the cut rims of the opening.
Resources
-
HUUM HIVE Manual US
1.93 MB -
HUUM HIVE Mini DWG
0.06 MB -
HUUM HIVE Mini OBJ
3.37 MB -
HUUM HIVE Mini SKP
82.24 MB -
HUUM HIVE Mini IFC
16.03 MB -
HUUM HIVE Mini 3DS
12.97 MB -
HUUM HIVE Mini With Safety Railing SKP
91.45 MB -
HUUM HIVE MINI With Safety Railing IFC
17.81 MB -
HUUM HIVE Mini With Safety Railing 3DS
14.81 MB
Smart control system
Soft steam
Long-lasting relaxation
Stainless steel
CE certificate
UKCA certificate
Made in Estonia
HUUM app enables one to heat the sauna from a smartphone
HUUM mobile app allows you to heat the sauna from your phone, wherever you are. It doesn’t matter whether you are heading home from the office, finishing your evening jog or simply wish to have an unplanned rewarding sauna evening with your friends – just a few clicks on the smartphone, and a hot sauna awaits you!
Nature-inspired shapes

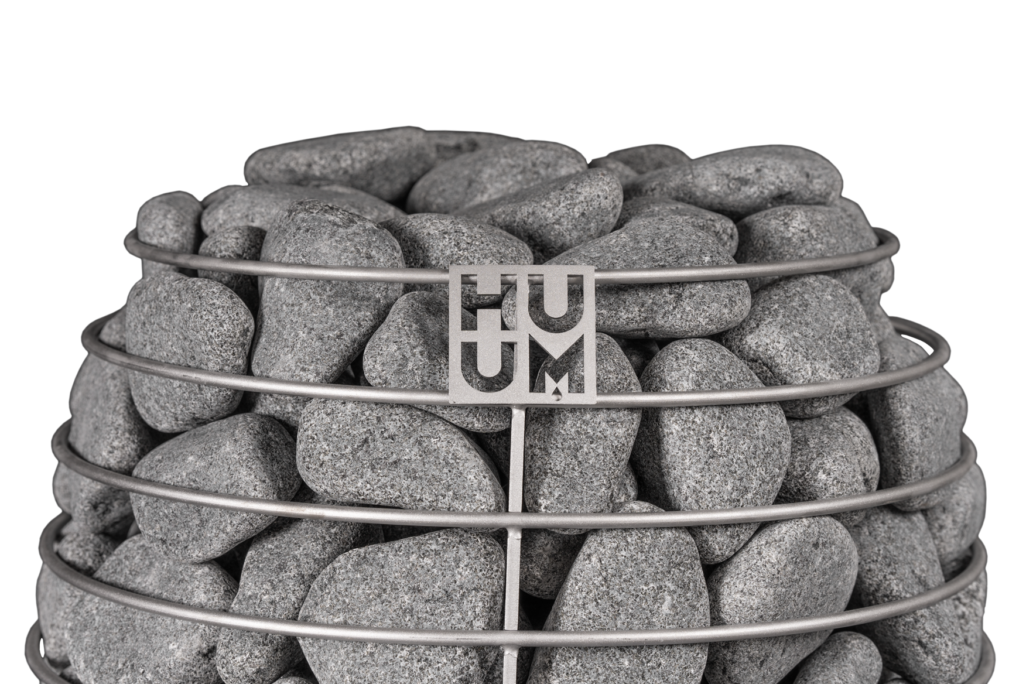

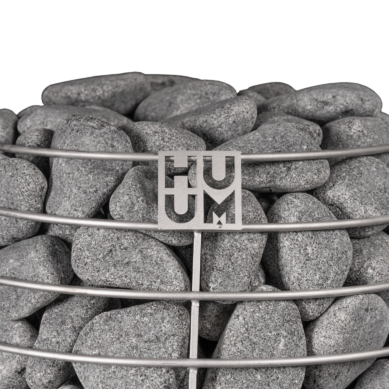

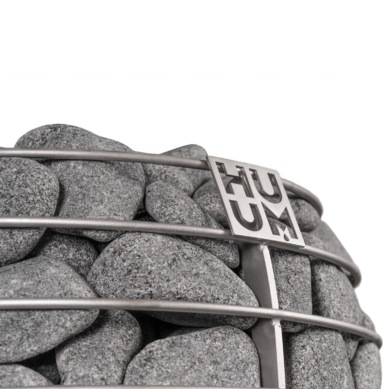

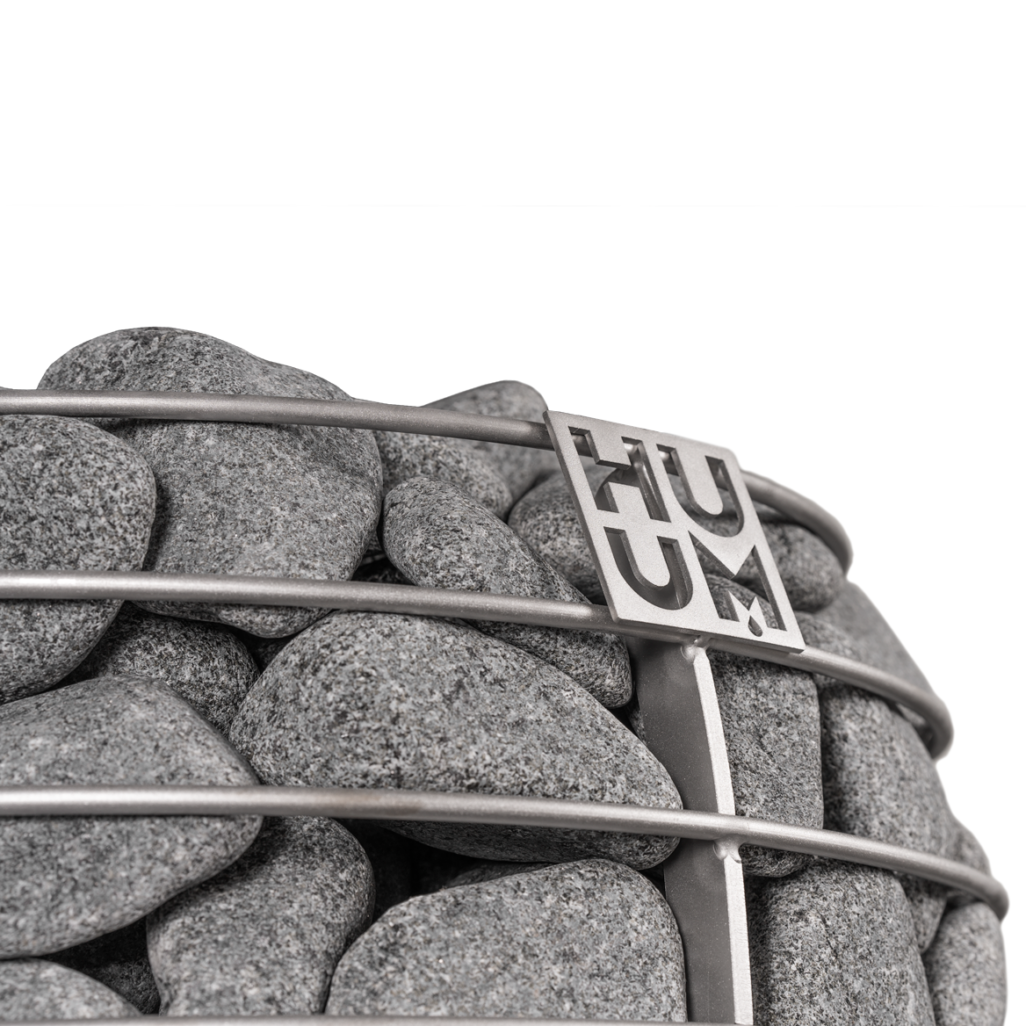

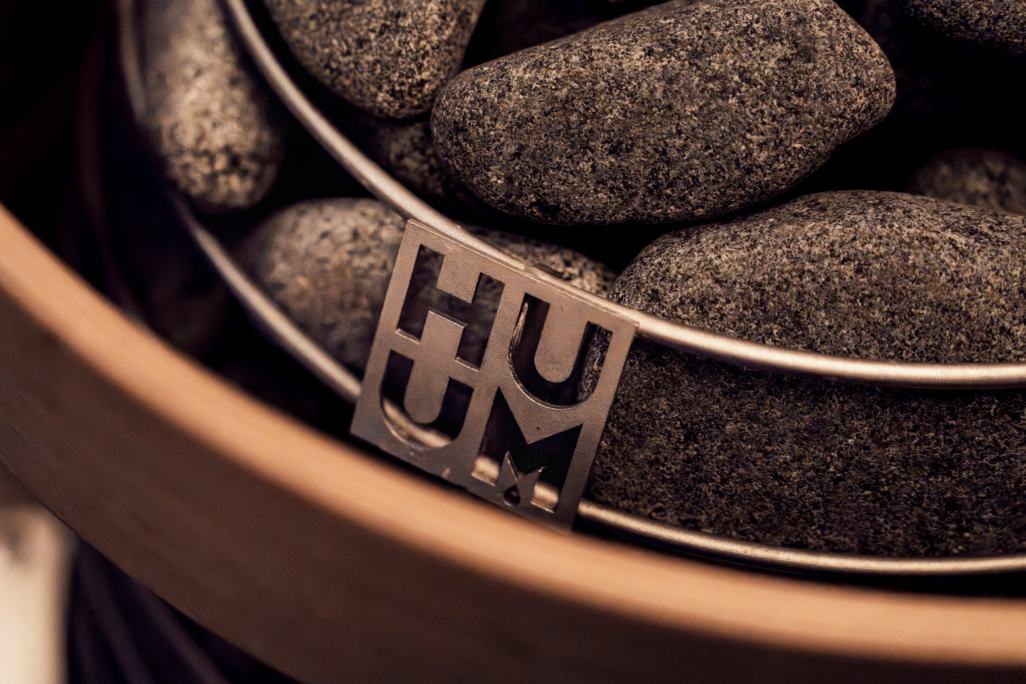

Round form of HIVE sauna heater imitates the hive of wild bees. Stainless steel arcs surround the sauna stones with pure elegance and accentuate their natural beauty.

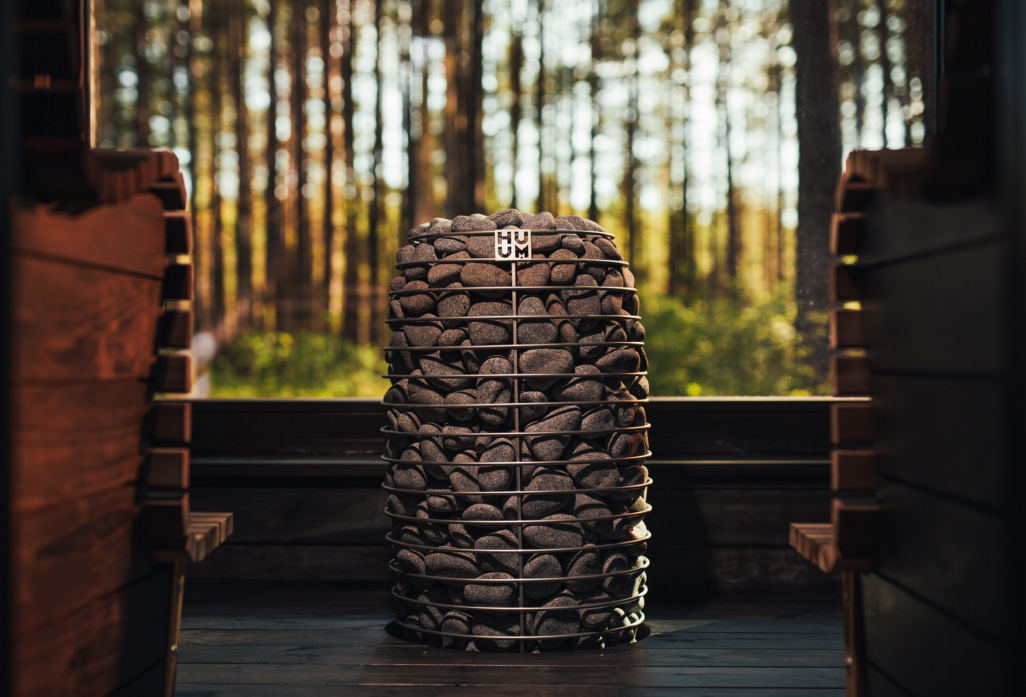

HIVE sauna heater represents the copious warmth of Nordic sauna that unites people. It is the heart and the focal point of the sauna. It’s pure pleasure to share stories and the authentic sauna experience beside it!
Made in Estonia

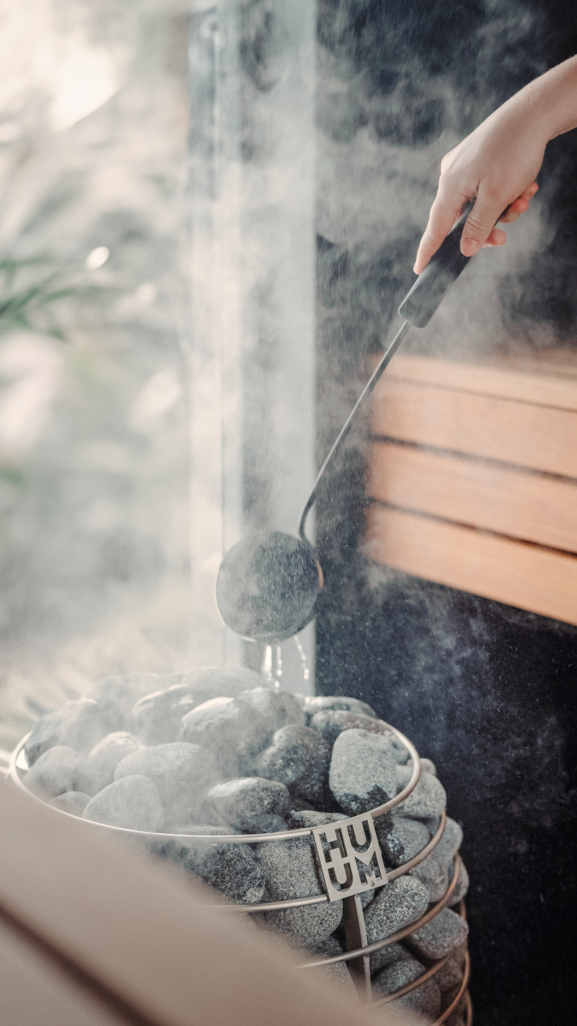

Soft steam that resembles the traditional sauna
The amount of metal used in HUUM sauna heaters is very small – this ensures that majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air, which is also high in the traditional wood-heated sauna.
This and the exceptionally large quantity of sauna rocks are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
