HIVE electric sauna heater
Electric sauna heaters
- Stone-emphasizing design
- Exceptionally mild and long-lasting steam
- Control with mobile app
- Warranty 5 years

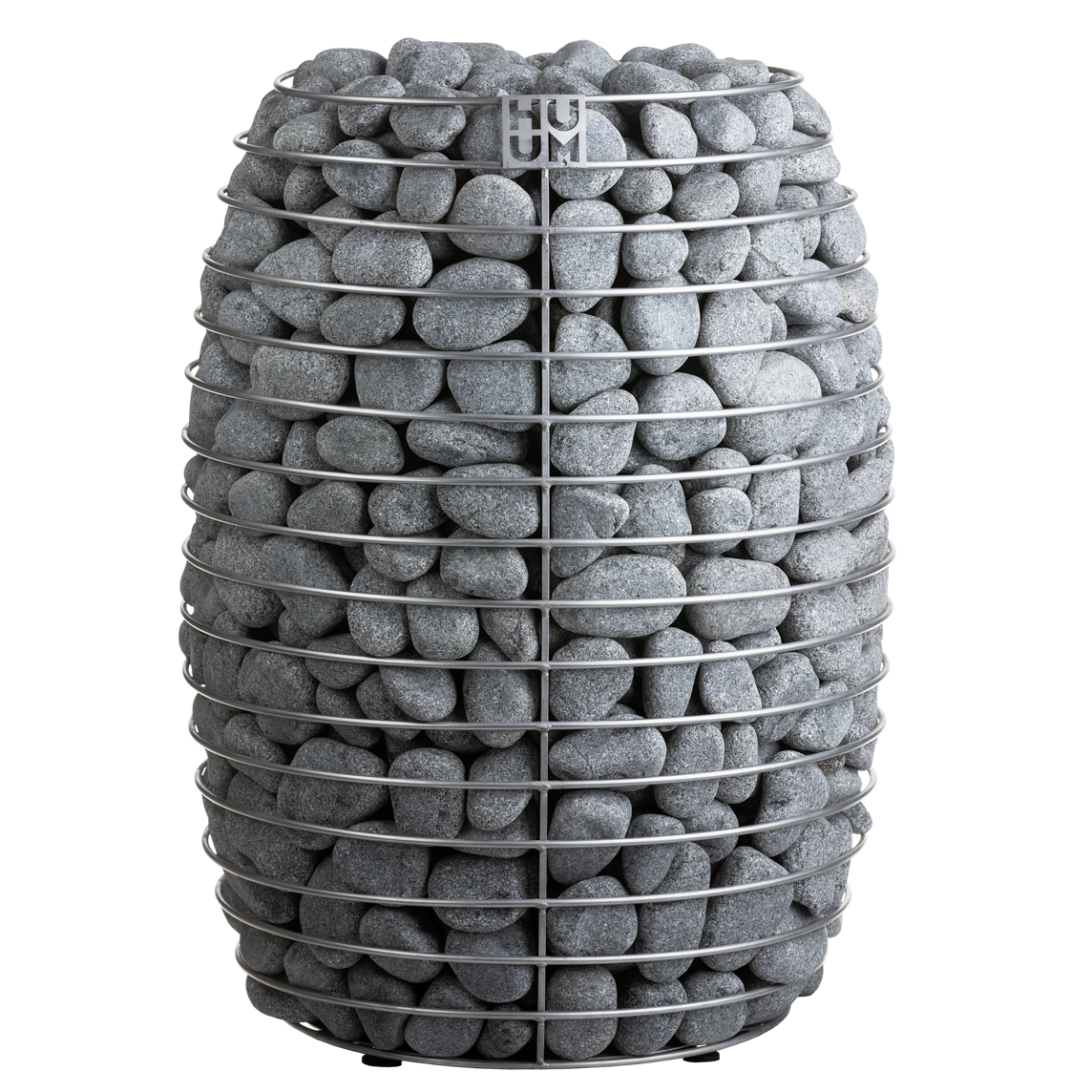

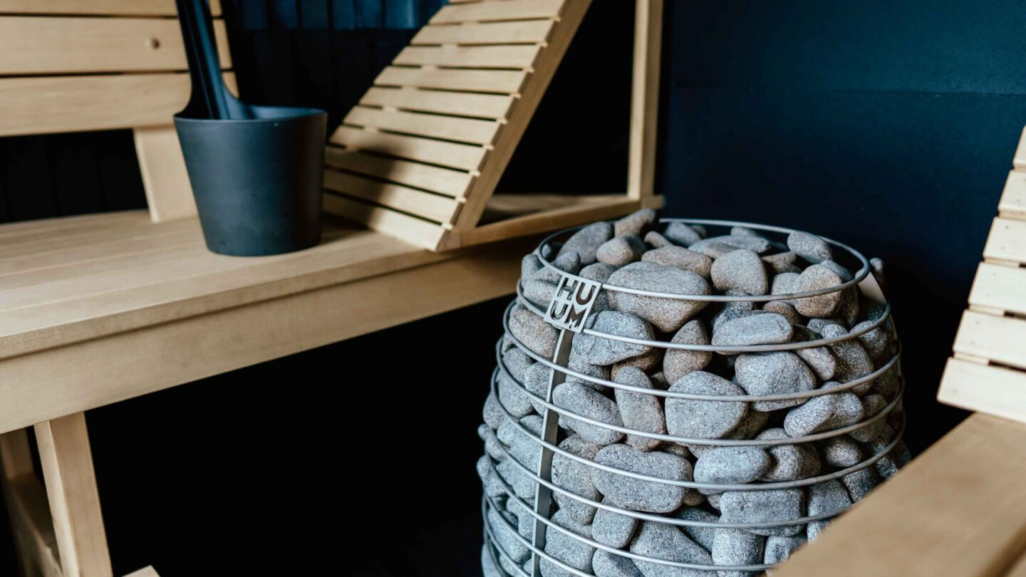

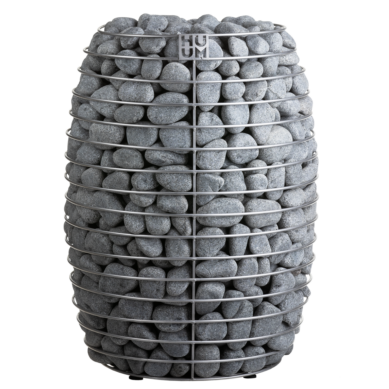

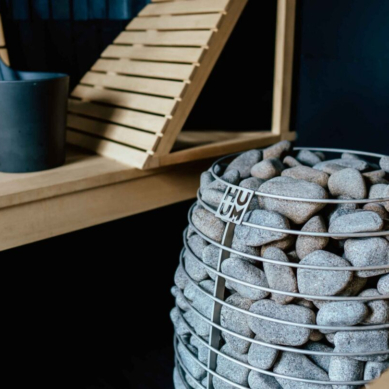

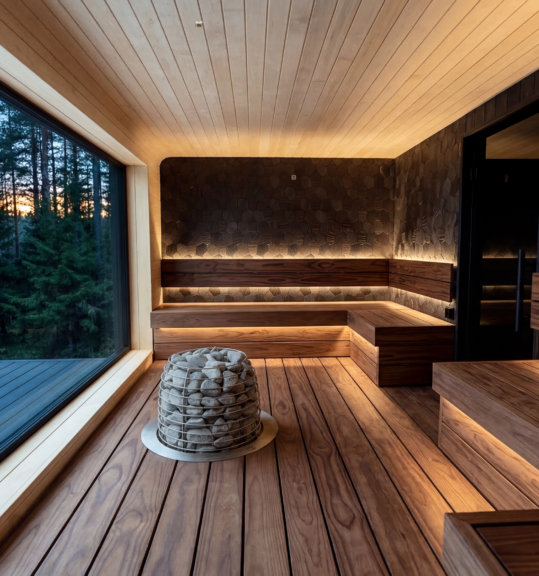

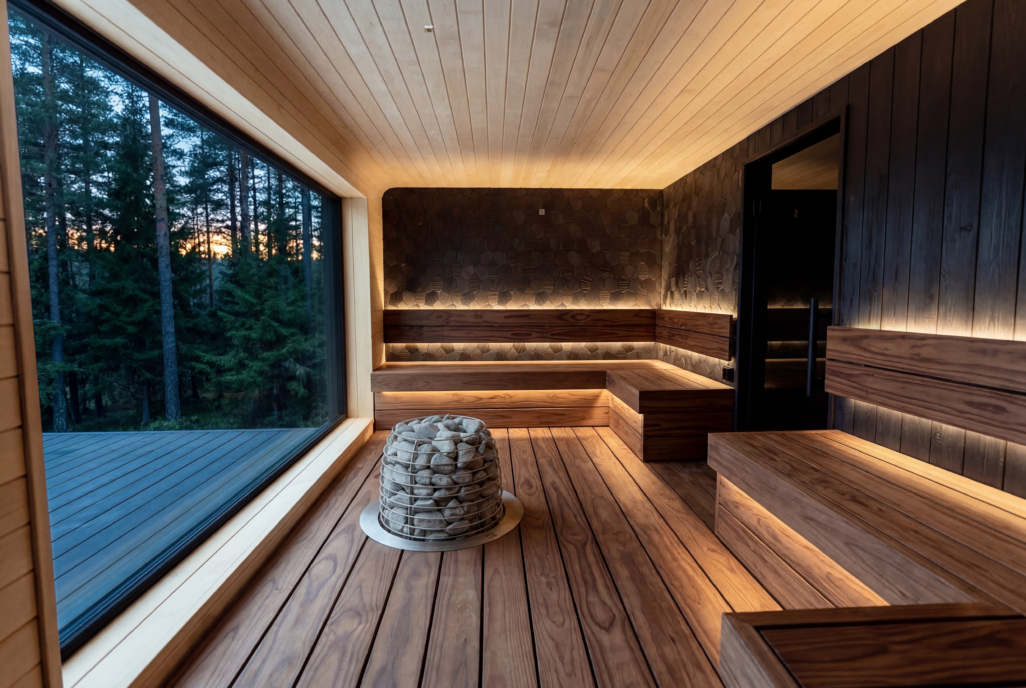

HIVE electric sauna heater is a stylish option for bigger saunas, ideal for spas or gyms. The beehive-inspired design of the HIVE electric heater brings out the natural beauty of stones. It’s designed to hold an impressive 250 kg / 551 lb of sauna stones, providing gentle and rich steam for even longer sauna sessions. The details of the heater are made of durable stainless steel. The HIVE’s round shape allows it to be placed in the center of the room, making it perfect for groups or families. Its Nordic, natural design creates a peaceful ambiance that helps you relax and unwind.
Specifications
Models
Metric
Imperial
Heater
- Power rating 12 kW 12 kW
- Steam room min 12 m³ 424 ft³
- Steam room max 18 m³ 636 ft³
- Holding capacity of sauna rocks 250 kg 551 lb
- Weight 20 kg 44.1 lb
- Height 750 mm 29.6 in
- Diameter 560 mm 22 in
- Power rating 9 kW 9 kW
- Steam room min 9 m³ 318 ft³
- Steam room max 14 m³ 495 ft³
- Holding capacity of sauna rocks 250 kg 551 lb
- Weight 20 kg 44.1 lb
- Height 750 mm 29.6 in
- Diameter 560 mm 22 in
Connection
- Fuse 30+30 A
- Supply voltage 240 V 2~
- Power cable 10+10 AWG
- Fuse 30+30 A
- Supply voltage 208 V 2~
- Power cable 10+10 AWG

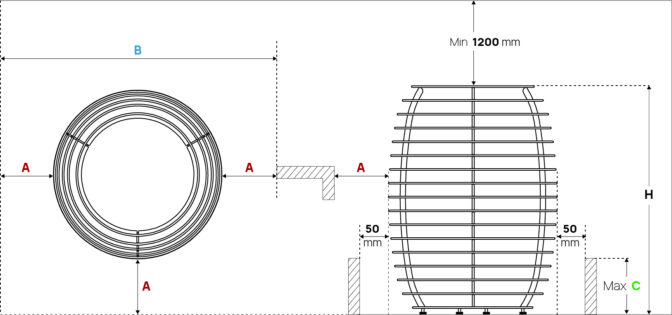

Safety distances
- A 120 mm 4.7 in
- B 800 mm 31.5 in
- H 750 mm 29.5 in
- A 120 mm 4.7 in
- B 800 mm 31.5 in
- H 750 mm 29.5 in
Metric
Imperial
Heater
- Power rating 15 kW 15 kW
- Steam room min 15 m³ 530 ft³
- Steam room max 23 m³ 813 ft³
- Holding capacity of sauna rocks 250 kg 551 lb
- Weight 21 kg 46.3 lb
- Height 750 mm 29.6 in
- Diameter 560 mm 22 in
- Power rating 11.25 kW 11.25 kW
- Steam room min 11 m³ 389 ft³
- Steam room max 17 m³ 601 ft³
- Holding capacity of sauna rocks 250 kg 551 lb
- Weight 21 kg 46.3 lb
- Height 750 mm 29.6 in
- Diameter 560 mm 22 in
Connection
- Fuse 50+50 A
- Supply voltage 240 V 2~
- Power cable 8+8 AWG
- Fuse 40+40 A
- Supply voltage 208 V 2~
- Power cable 8+8 AWG
Safety distances
- A 150 mm 5.9 in
- B 860 mm 33.9 in
- H 750 mm 29.5 in
- A 150 mm 5.9 in
- B 860 mm 33.9 in
- H 750 mm 29.5 in
Metric
Imperial
Heater
- Power rating 18 kW 18 kW
- Steam room min 18 m³ 636 ft³
- Steam room max 28 m³ 989 ft³
- Holding capacity of sauna rocks 250 kg 551 lb
- Weight 22 kg 48.5 lb
- Height 750 mm 29.6 in
- Diameter 560 mm 22 in
- Power rating 13.5 kW 13.5 kW
- Steam room min 13.5 m³ 477 ft³
- Steam room max 21 m³ 742 ft³
- Holding capacity of sauna rocks 250 kg 551 lb
- Weight 22 kg 48.5 lb
- Height 750 mm 29.6 in
- Diameter 560 mm 22 in
Connection
- Fuse 50+50 A
- Supply voltage 240 V 2~
- Power cable 8+8 AWG
- Fuse 40+40 A
- Supply voltage 208 V 2~
- Power cable 8+8 AWG
Safety distances
- A 180 mm 7.1 in
- B 920 mm 36.2 in
- H 750 mm 29.5 in
- A 180 mm 7.1 in
- B 920 mm 36.2 in
- H 750 mm 29.5 in
The set includes
Heater aditionally needs
- UKU sauna control system
- HIVE sauna heater with air tunnel requires 250 kg / 551 lb of sauna stones with a diameter of 5–10 cm / 2-4 in
- Heat-resistant power cable
Design options
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
- The UKU control system set already includes a black plastic control panel CLASSIC Black.
- The safety railing with wooden arches complements the design and adds safety.

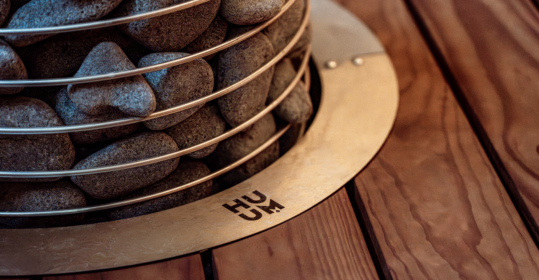

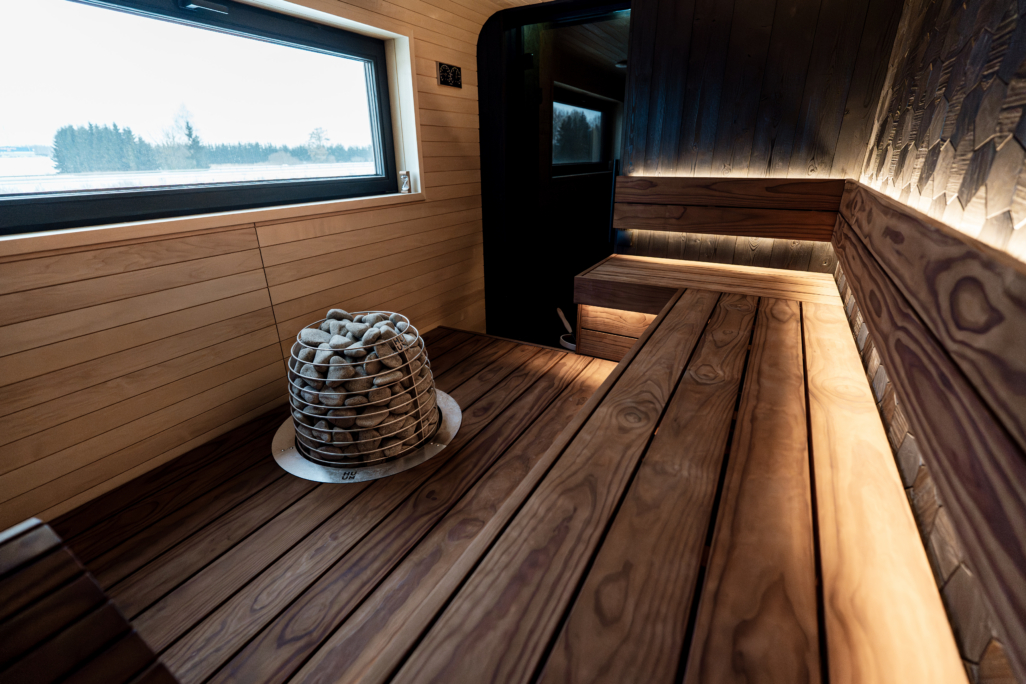

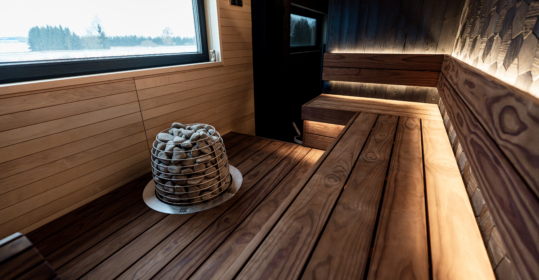

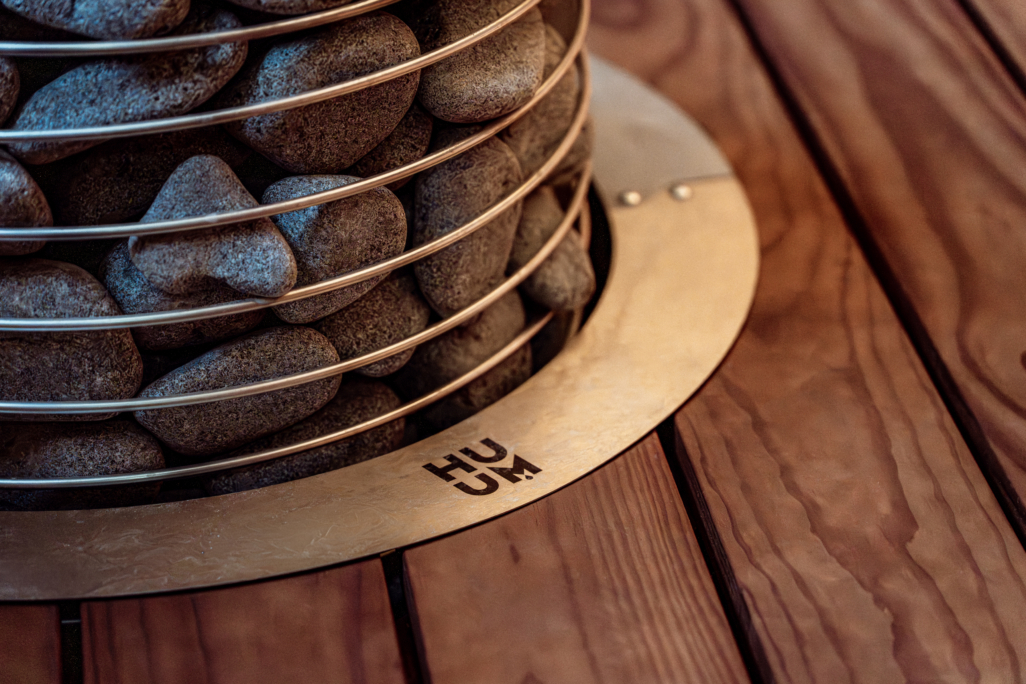

- As a design option, HIVE electric sauna heater can be embedded into the sauna bench.
- When the heater is embedded, at least 350 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of the HIVE electric sauna heater for covering the cut rims of the opening.
Resources
-
HUUM HIVE Manual US
1.93 MB -
Images of HIVE sauna heater
95.45 MB -
HUUM HIVE DWG
0.14 MB -
HUUM HIVE OBJ
3.23 MB -
HUUM HIVE SKP
134.60 MB -
HUUM HIVE IFC
24.78 MB -
HUUM HIVE 3DS
19.35 MB
Easy to use
Soft steam
Long-lasting relaxation
Stainless steel
CE certificate
Safety and control
Made in Estonia
Nature-inspired shapes

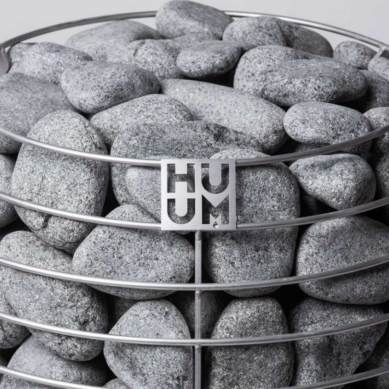

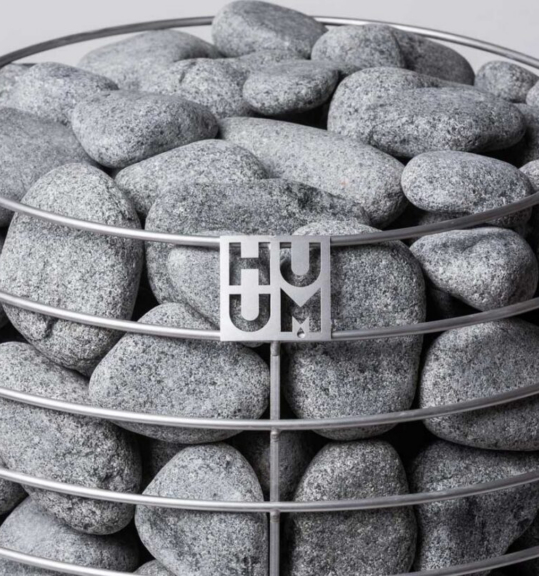

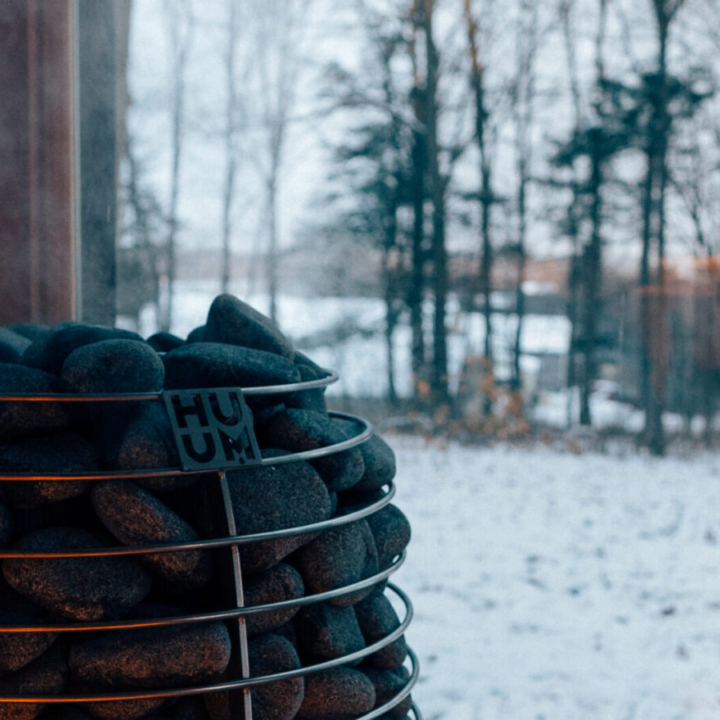

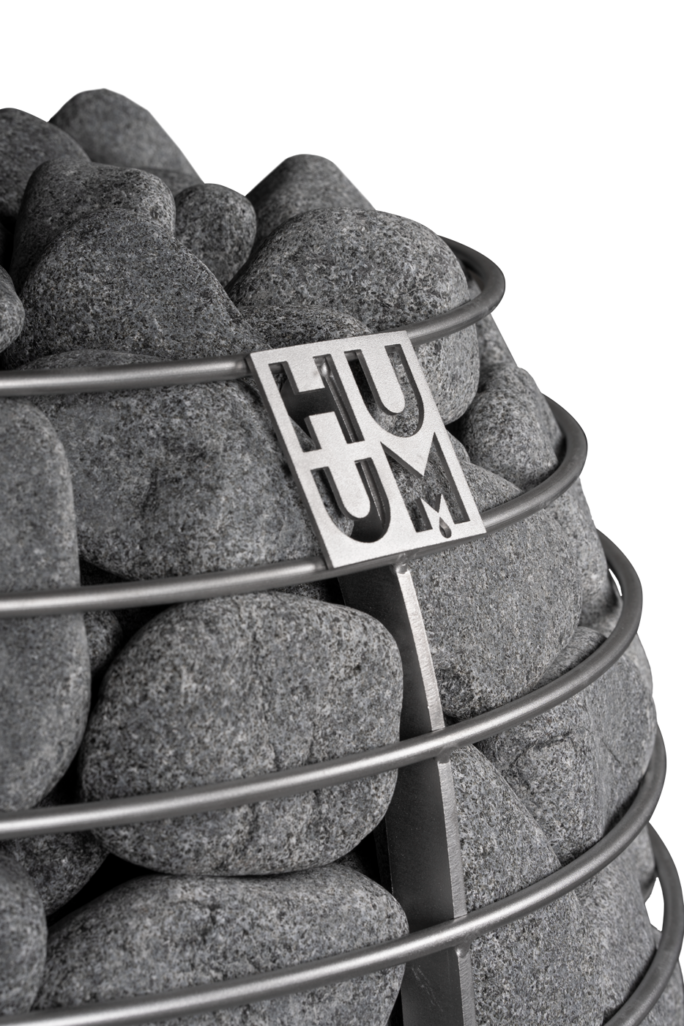

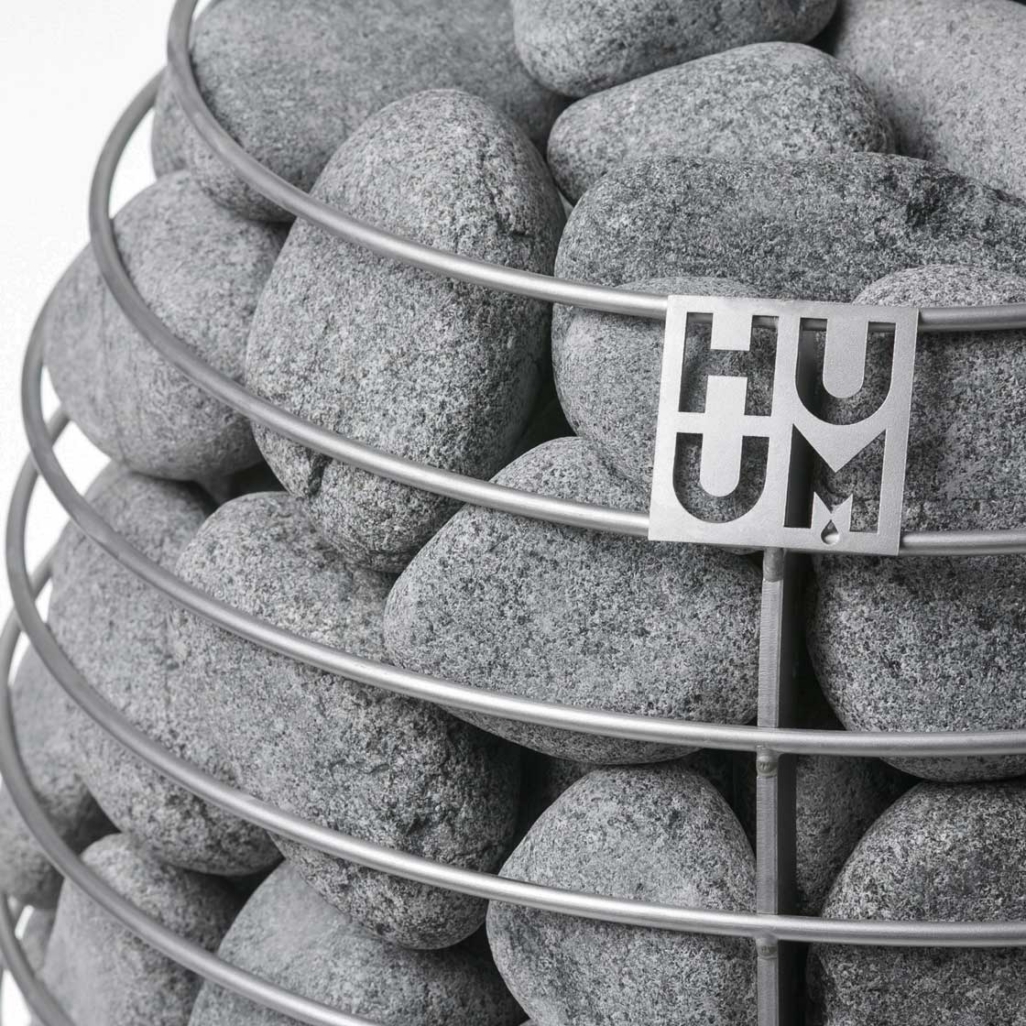

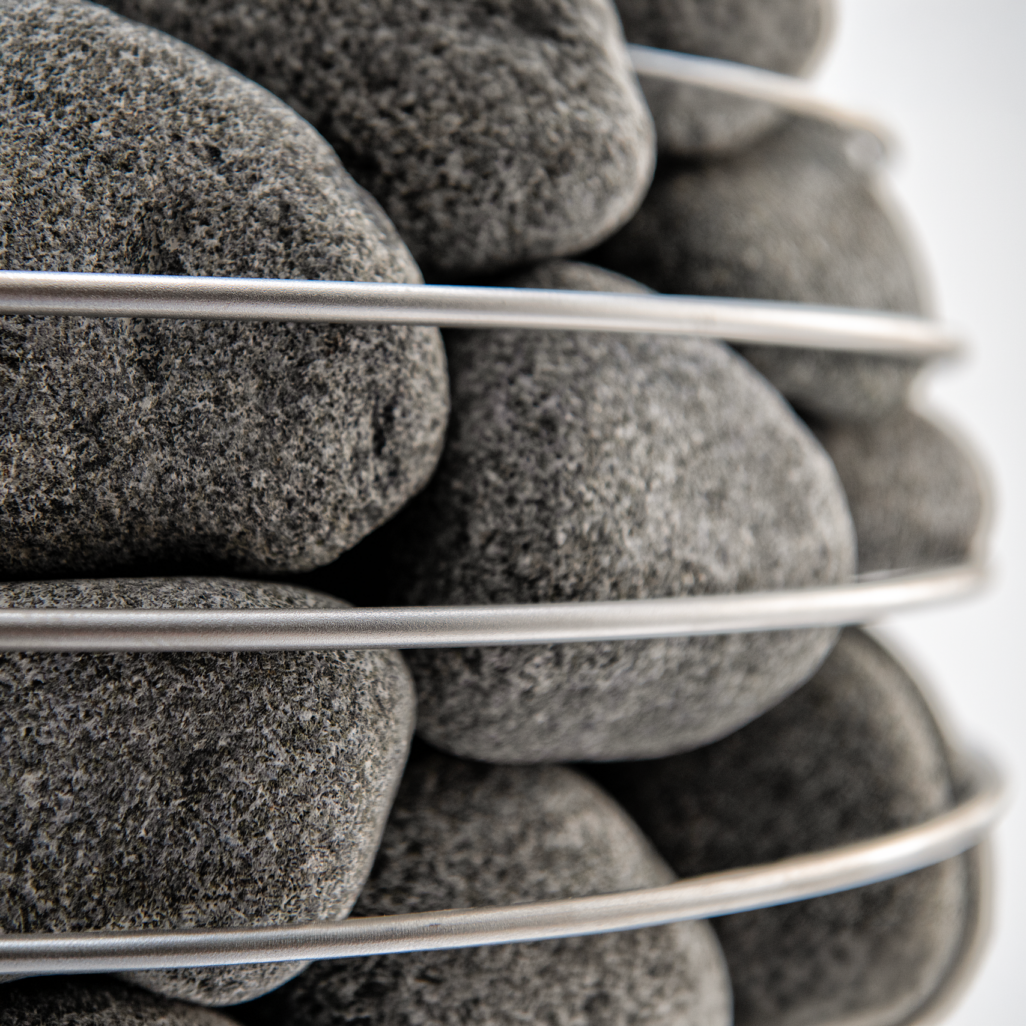

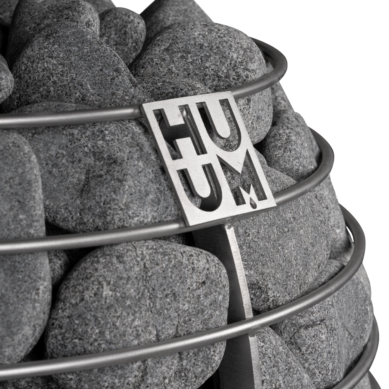

The round form of the HIVE sauna heater imitates a wild beehive. Stainless steel arcs surround the sauna stones with pure elegance and accentuate their natural beauty.

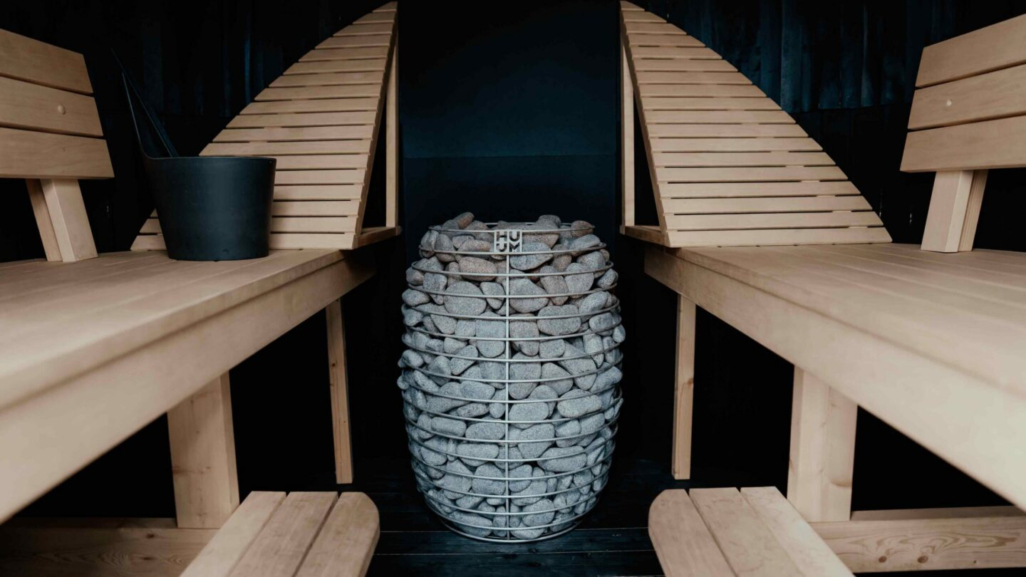

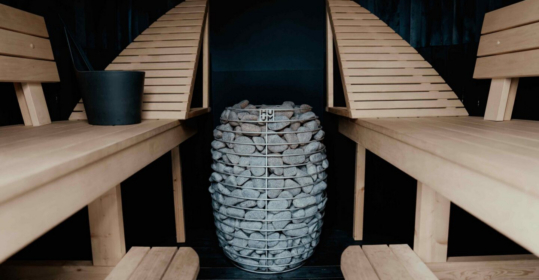

HIVE sauna heater represents the copious warmth of a Nordic sauna that unites people. It is the heart and focal point of the sauna. It’s pure pleasure to share stories and an authentic sauna experience beside it!
Made in Estonia
Soft steam that resembles the traditional sauna
The amount of metal used in HUUM sauna heaters is very small – this ensures that majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air, which is also high in the traditional wood-heated sauna.
This and the exceptionally large quantity of sauna stones are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
Learn more:
What happens to our body in sauna
-
Classy and smart sauna controller

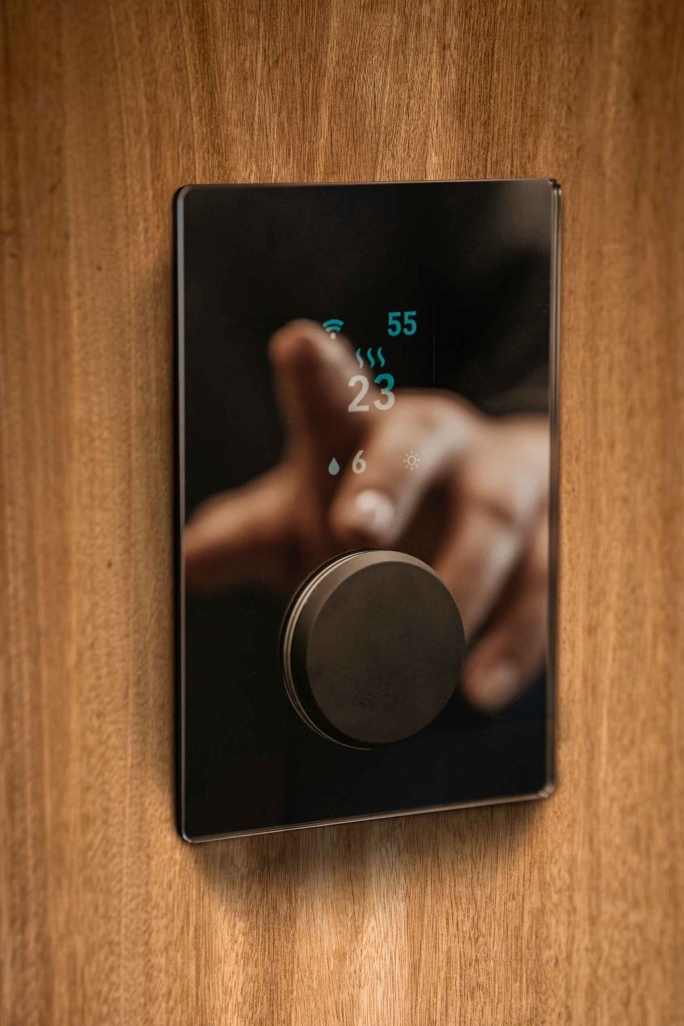

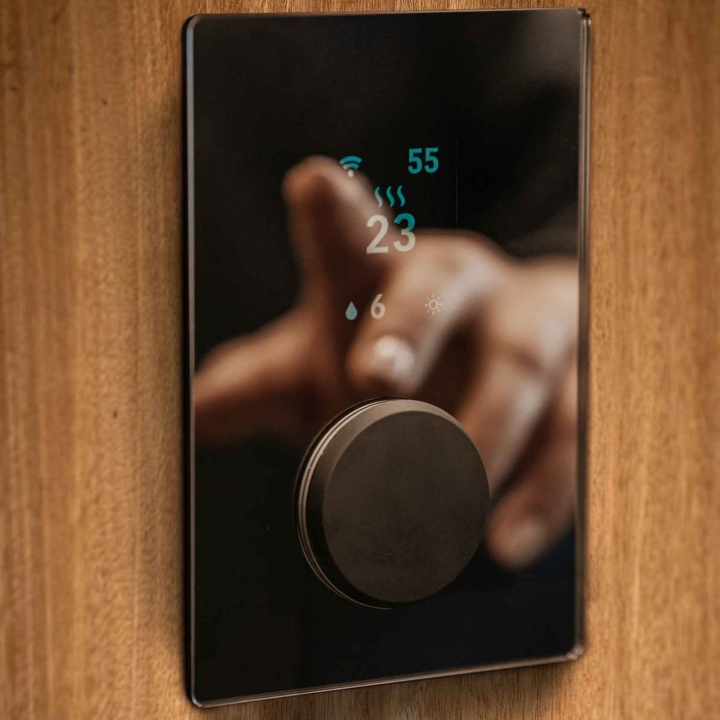

HUUM sauna controller represents an intuitive and efficient solution for heating the sauna. Sauna controllers are available with different enclosures, and their menu is simple and user-friendly. HUUM controllers heat the sauna through the smart UKU sauna control system. You can choose a suitable model, depending on whether you prefer to heat the sauna on site or via HUUM mobile app. UKU sauna control system ensures simplicity and safety of sauna heating, and it is compatible with electric sauna heaters of various manufacturers.
-
HUUM app enables to heat the sauna from a smartphone
HUUM mobile app allows you to heat the sauna from your phone, wherever you are. It does not matter whether you are heading home from the office, are finishing your evening jog or simply wish to have an unplanned rewarding sauna evening with your friends – just a few clicks from the smartphone, and a hot sauna awaits you!
