- sauna stove heated by firewood
- metal grate
- sauna stove installation and operational manual
- heat-resistant glove
- splints
- metal fixing plates (2 pcs)
- ash grate
- cleaning hatches (2 pcs)
- ash drawer

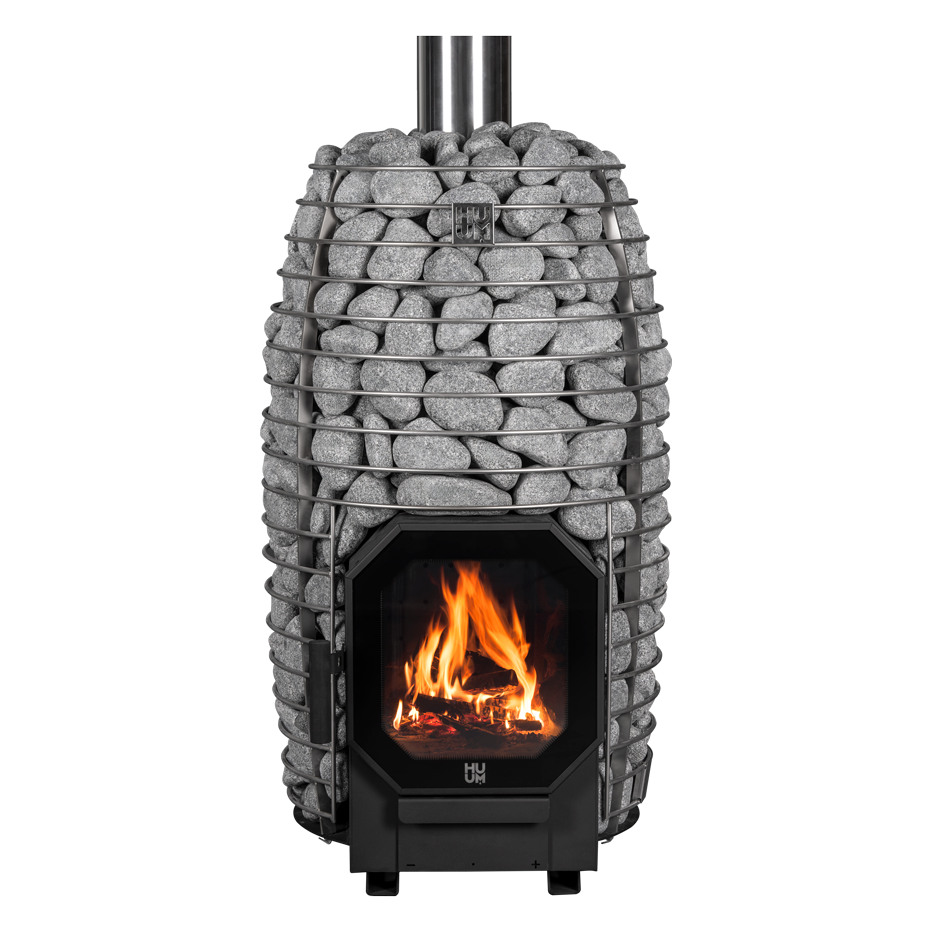

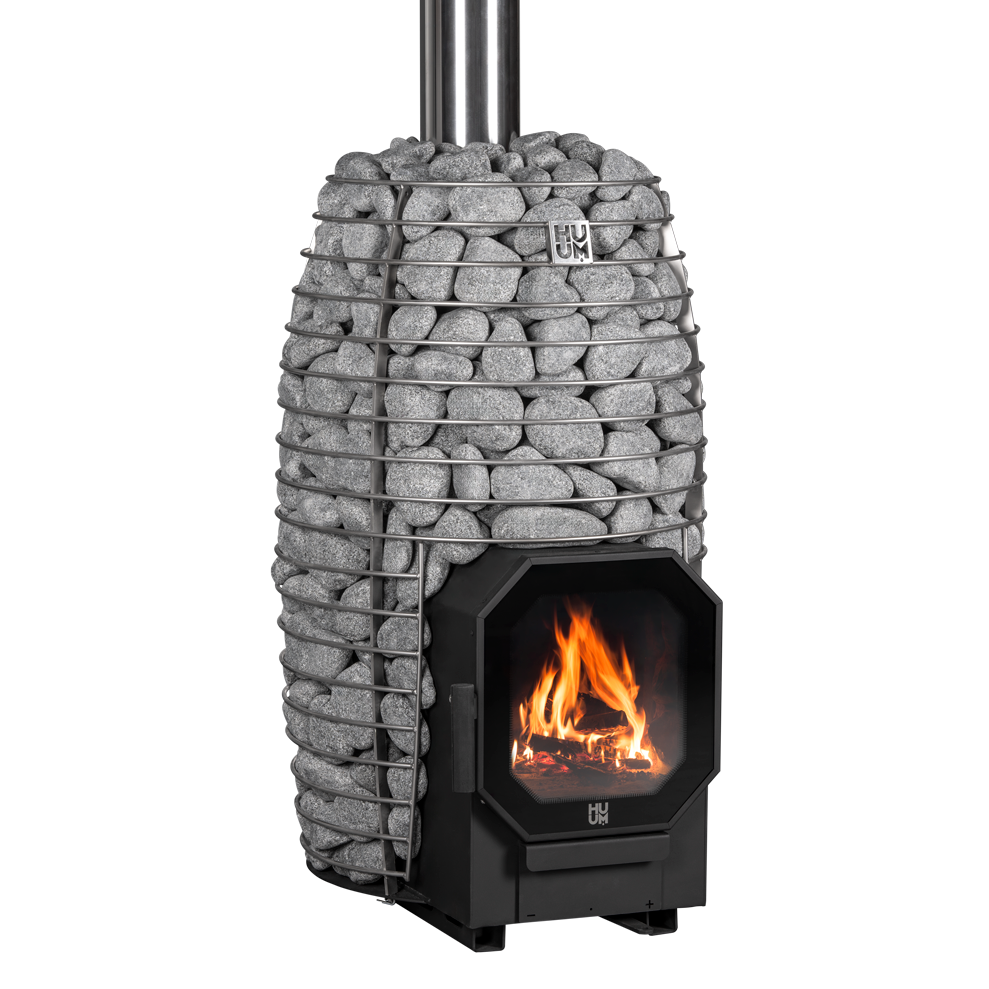

HIVE Flow wood-burning stove
Wood-burning sauna stoves
- Unique design
- Innovative patent pending furnace construction
- Holds 150 kg of stones (35-40 kg with stone cage)
- Economical wood use
- Low environmental impact
- Mild and long-lasting steam
- 5-Year warranty

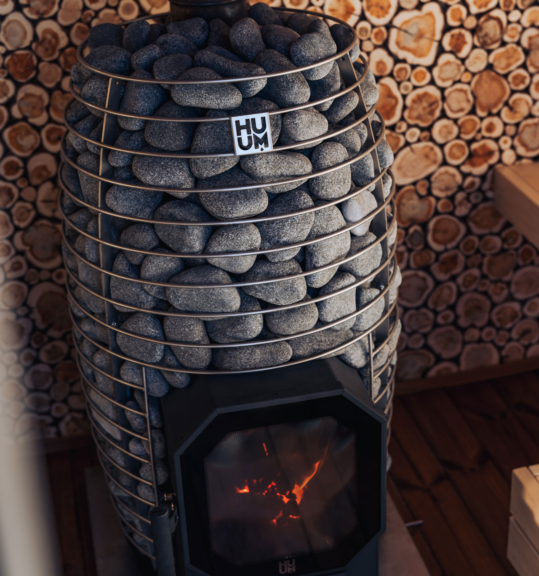

The HIVE Flow wood-burning stove stands out as one of the most efficient and environmentally sustainable sauna heaters on the market. Its innovative design ensures that 75% of the heat from the firewood directly heats your sauna rather than escaping through the chimney. The large volume of stones retains heat, providing steam for over 30 minutes after the fire is extinguished.
The HIVE Flow is the ideal choice for those who value environmental consciousness and wish to have a memorable sauna experience. The stove’s CO emissions are just 346 mg/m³ compared to over 1000 mg/m³ in similar stoves, and the particulate matter output is only 25 mg/m³, the lowest in its category.

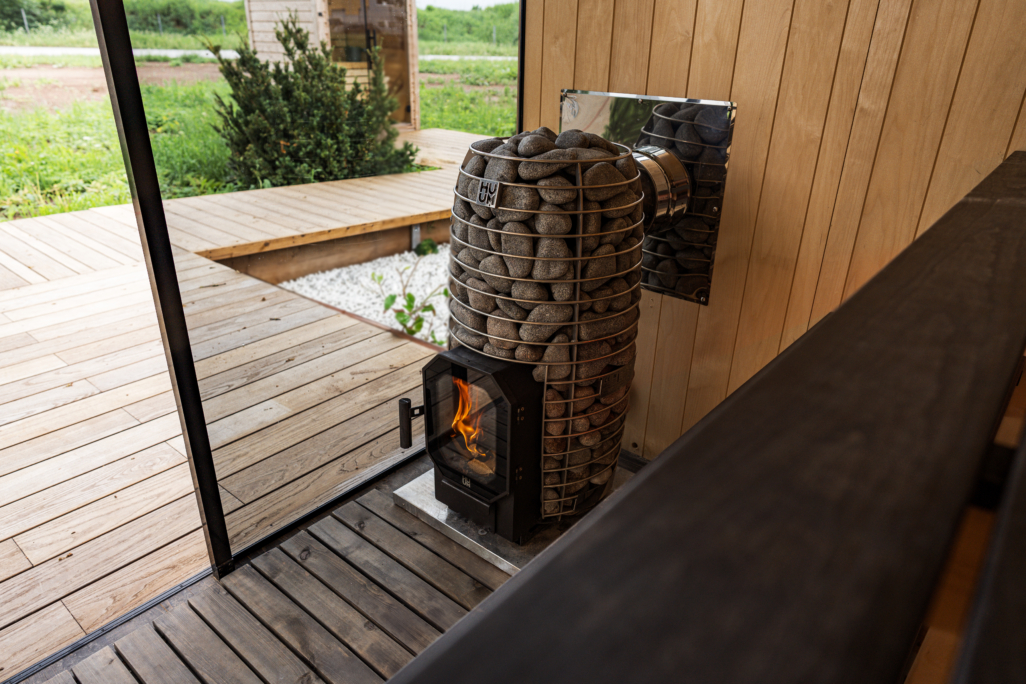

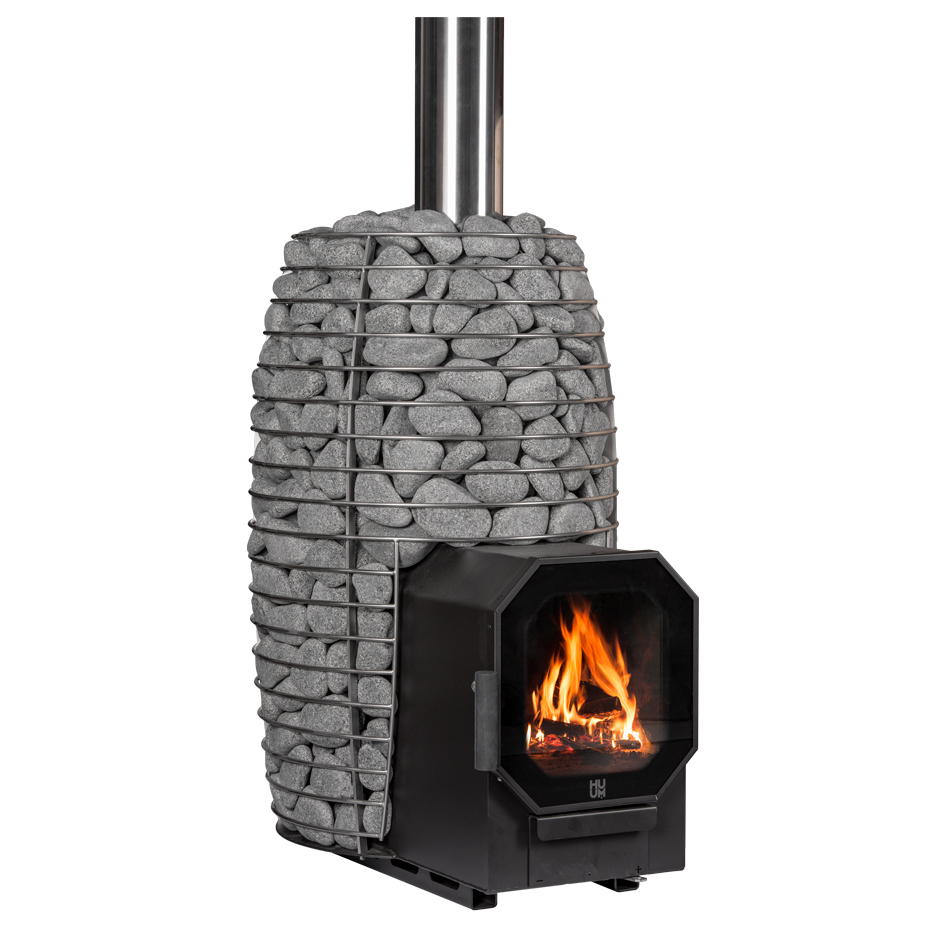

Thanks to its unique design, the HIVE Flow stove has reduced fire risk, allowing for snug installation compared to traditional heaters. The stove features a robust structure with a 5 mm top and 3 mm thick sides, ensuring even heat distribution. The HIVE Flow weighs 67 kg (73 kg for the LS model) and can hold up to 150 kg of stones, with an additional 35-40 kg in the stone cage.

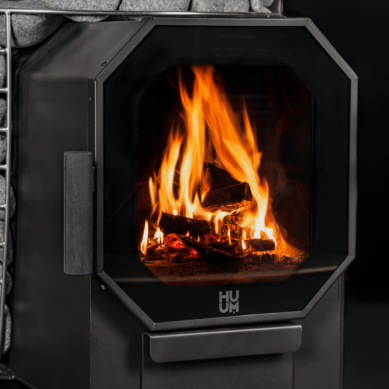

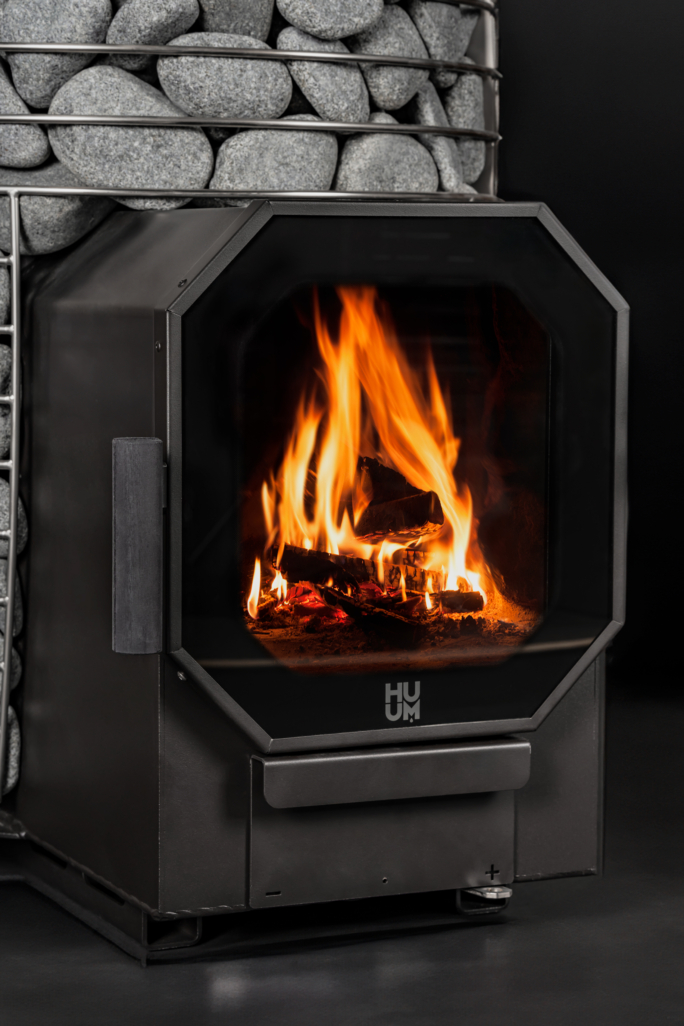

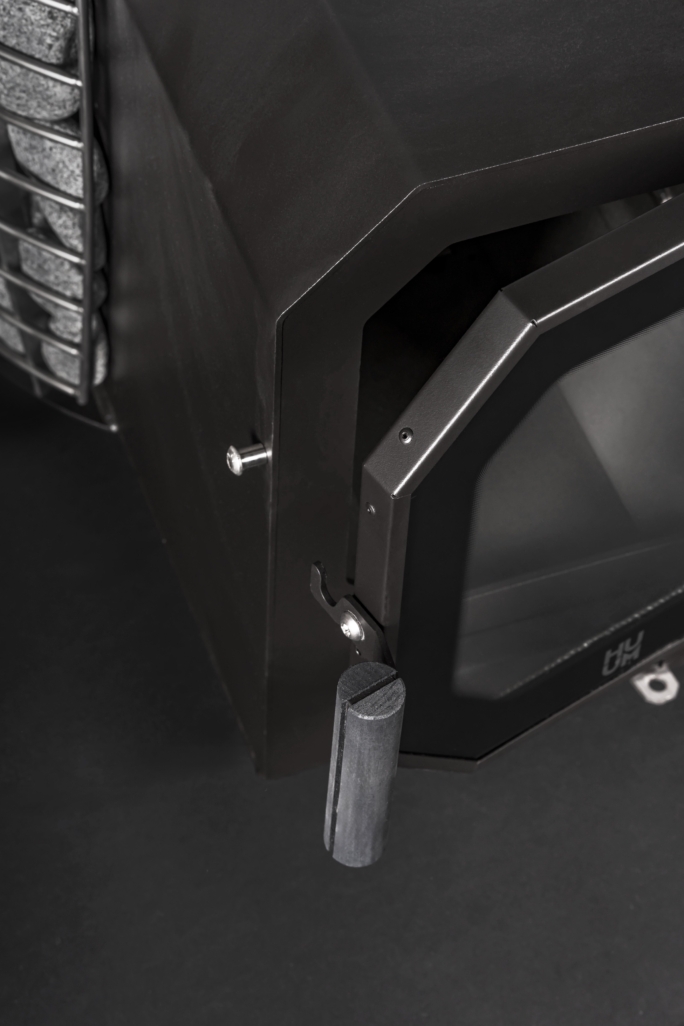

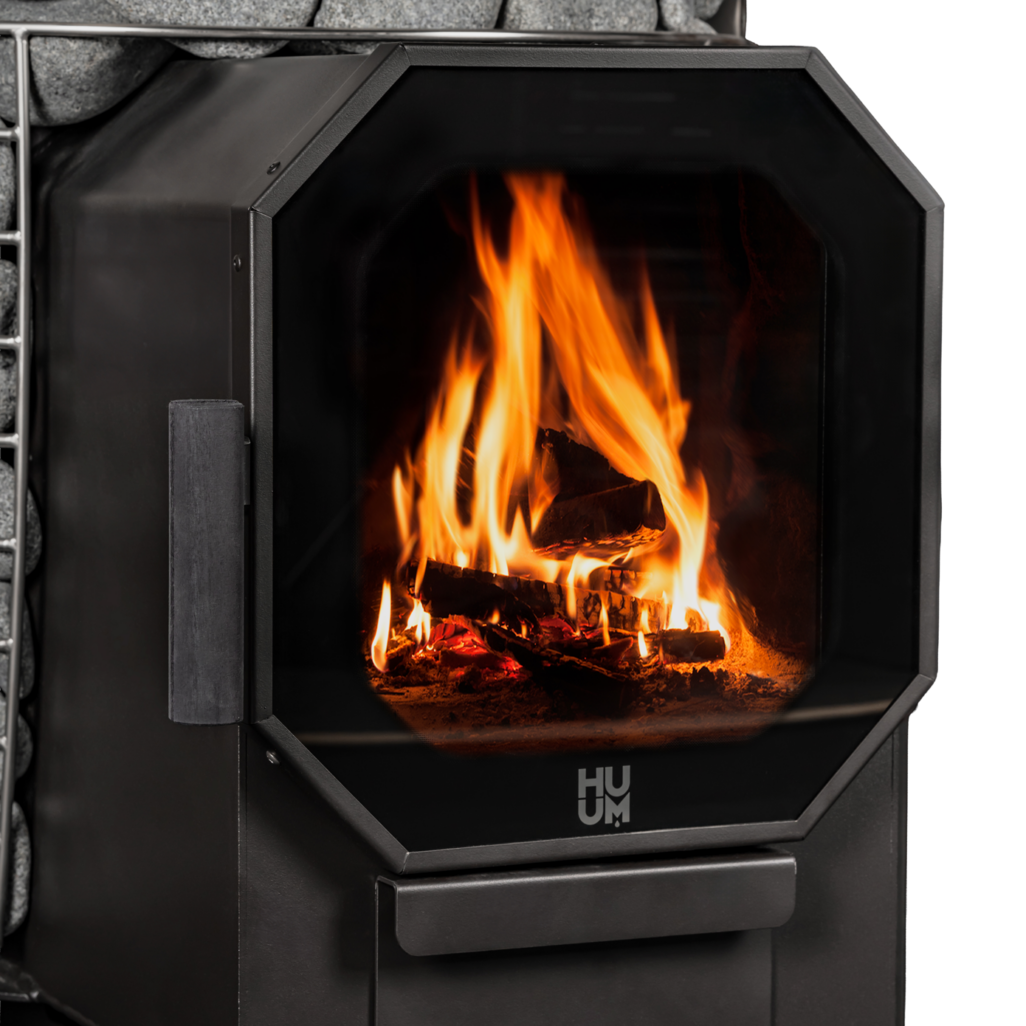

The large glass furnace door enhances the cozy ambiance of your sauna, letting you enjoy the mesmerizing flames. The HIVE Flow meets strict environmental standards and surpasses all known efficiency and environmental metrics for wood-burning stoves, ensuring a high-quality, sustainable choice for your sauna.
Also available as HIVE Flow Mini and Mini LS, which hold 105 kg of stones. With the stone cage, you can add an additional 35-40 kg of stones.
Models
Stove
- Power rating 8,5 kW 8,5 kW
- Steam room min 6 m³ 212 ft³
- Steam room max 14 m³ 494 ft³
- Holding capacity of sauna rocks ~105 kg 231 lb
- Weight 54 kg 119 lb
- Height 884 mm 34 51/64 in
- Width 450 mm 17 23/32 in
- Depth 493 mm 19 13/32 in
- Firewood length 300 mm 11 13/16 in
- Diameter of the flue 114 mm 4 31/64 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=2000&h=1029 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=300&h=154 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=1024&h=527 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=768&h=395 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=365&h=188 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=730&h=376 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=1460&h=751 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=120&h=62 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_uldmoodud_manuaalis.png?func=bound&w=240&h=123 240w)

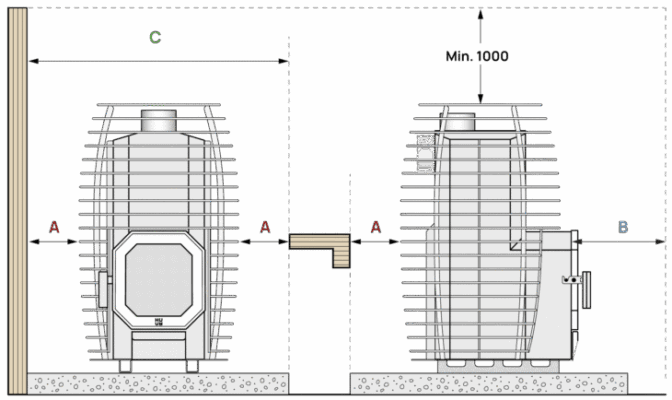

Safety distances
- A 150 mm 5 29/32 in
- B 500 mm 19 11/16 in
- C 750 mm 29 17/32 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=2000&h=1190 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=300&h=179 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1024&h=609 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=768&h=457 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=365&h=217 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=730&h=434 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1460&h=869 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=120&h=71 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=240&h=143 240w)
Stove
- Power rating 8,5 kW 8,5 kW
- Steam room min 6 m³ 212 ft³
- Steam room max 14 m³ 494 ft³
- Holding capacity of sauna rocks ~105 kg 231 lb
- Weight 59 kg 130 lb
- Height 884 mm 34 51/64 in
- Width 450 mm 17 23/32 in
- Depth 613 mm 24 9/64 in
- Firewood length 300 mm 11 13/16 in
- Diameter of the flue 114 mm 4 31/64 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=2000&h=1029 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=300&h=154 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=1024&h=527 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=768&h=395 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=365&h=188 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=730&h=376 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=1460&h=751 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=120&h=62 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_mini_ls_uldmoodud_manuaalis.png?func=bound&w=240&h=123 240w)
Safety distances
- A 150 mm 5 29/32 in
- B 500 mm 19 11/16 in
- C 750 mm 29 17/32 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=2000&h=1190 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=300&h=179 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1024&h=609 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=768&h=457 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=365&h=217 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=730&h=434 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1460&h=869 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=120&h=71 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=240&h=143 240w)
Stove
- Power rating 9,8 kW 9,8 kW
- Steam room min 8 m³ 282 ft³
- Steam room max 18 m³ 635 ft³
- Holding capacity of sauna rocks ~150 kg 330 lb
- Weight 67 kg 148 lb
- Height 884 mm 34 51/64 in
- Width 526 mm 20 45/64 in
- Depth 586 mm 23 5/64 in
- Firewood length 300 mm 11 13/16 in
- Diameter of the flue 114 mm 4 31/64 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=2000&h=1029 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=300&h=154 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=1024&h=527 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=768&h=395 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=365&h=188 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=730&h=376 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=1460&h=751 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=120&h=62 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_uldmoodud_manuaalis_01.png?func=bound&w=240&h=123 240w)
Safety distances
- A 150 mm 5 29/32 in
- B 500 mm 19 11/16 in
- C 826 mm 32 33/64 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=2000&h=1190 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=300&h=179 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1024&h=609 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=768&h=457 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=365&h=217 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=730&h=434 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1460&h=869 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=120&h=71 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=240&h=143 240w)
Stove
- Power rating 9,8 kW 9,8 kW
- Steam room min 8 m³ 282 ft³
- Steam room max 18 m³ 635 ft³
- Holding capacity of sauna rocks ~150 kg 330 lb
- Weight 73 kg 160 lb
- Height 884 mm 34 51/64 in
- Width 526 mm 20 45/64 in
- Depth 706 mm 27 51/64 in
- Firewood length 300 mm 11 13/16 in
- Diameter of the flue 114 mm 4 31/64 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=2000&h=1033 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=300&h=155 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=1024&h=529 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=768&h=397 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=365&h=189 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=730&h=377 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=1460&h=754 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=120&h=62 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ls_uldmoodud_manuaalis_01.png?func=bound&w=240&h=124 240w)
Safety distances
- A 150 mm 5 29/32 in
- B 500 mm 19 11/16 in
- C 826 mm 32 33/64 in
![](https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=2000&h=1190 2000w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=300&h=179 300w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1024&h=609 1024w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=768&h=457 768w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=365&h=217 365w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=730&h=434 730w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=1460&h=869 1460w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=120&h=71 120w, https://coqujctqma.cloudimg.io/https://huumsauna.com/wp-content/uploads/2024/06/hive_flow_ohutuskaugused_manuaalis_02.png?func=bound&w=240&h=143 240w)
- HIVE FLOW Mini needs 105 kg sauna stones (5-10 cm)
- HIVE FLOW needs 150 kg sauna stones (5-10 cm)
- Connection with the chimney
-
HUUM HIVE Flow US manual
4.29 MB -
HUUM HIVE Flow 3D Models
132.77 MB -
HUUM HIVE Flow LS 3D Models
94.88 MB -
HUUM HIVE Flow Mini 3D Models
88.34 MB -
HUUM HIVE Flow Mini LS 3D Models
141.86 MB -
huum_flow-mini_dwg
0.20 MB -
HUUM Flow Mini LS DWG
0.22 MB -
HUUM Flow DWG
0.23 MB -
HUUM Flow LS DWG
0.23 MB
