HIVE Mini 9

Heater

• Power rating 9 kW 9 kW
• Steam room min 8 m³ 282 ft³
• Steam room max 15 m³ 530 ft³
• Holding capacity of sauna rocks 150 kg 331 lb
• Weight 16 kg 35.3 lb
• Height 750 mm 29.6 in
• Diameter 460 mm 18.1 in
• Power rating 6.75 kW 6.75 kW
• Steam room min 6.5 m³ 230 ft³
• Steam room max 11 m³ 388 ft³
• Holding capacity of sauna rocks 150 kg 331 lb
• Weight 16 kg 35.3 lb
• Height 750 mm 29.6 in
• Diameter 460 mm 18.1 in

Connection

• Fuse 50 A
• Supply voltage 240 V 2~
• Power cable 8 AWG
• Fuse 40 A
• Supply voltage 208 V 2~
• Power cable 8 AWG

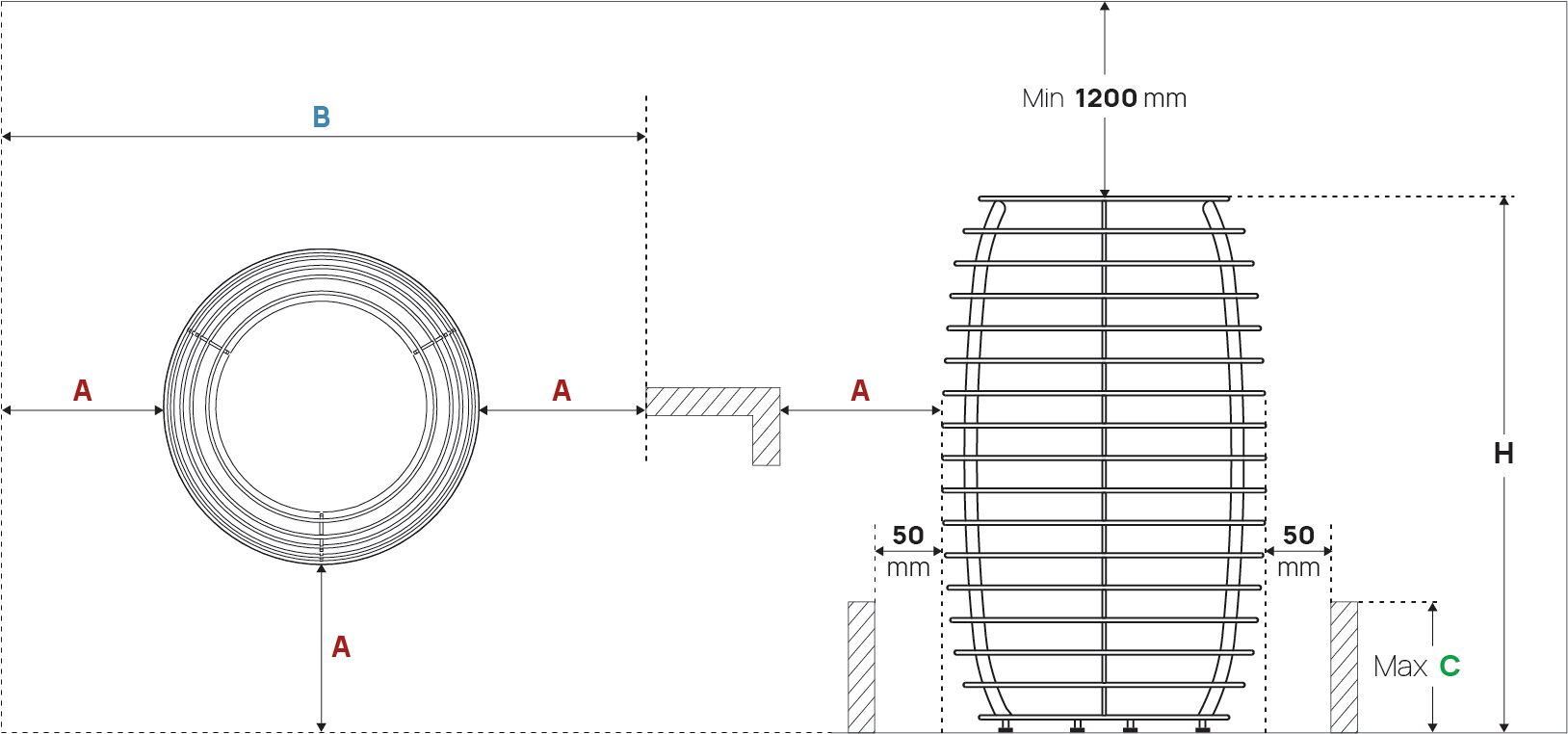

Safety distances

• A 90 mm 3.5 in
• B 640 mm 25.2 in
• A 90 mm 3.5 in
• B 640 mm 25.2 in
